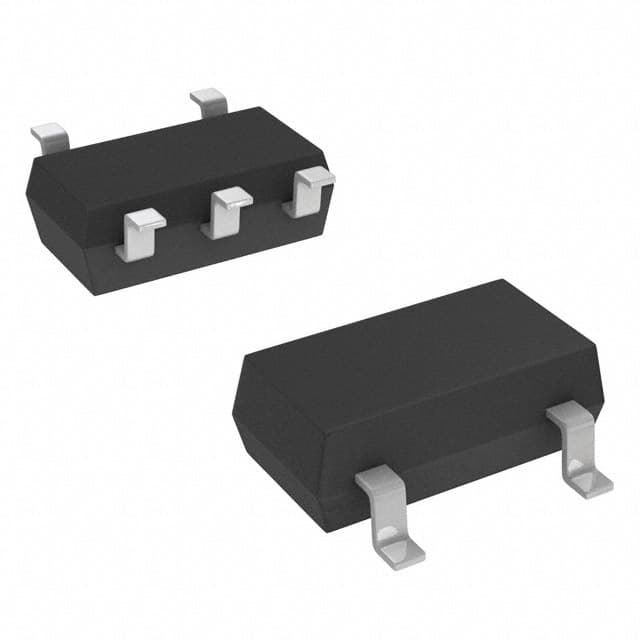

INFINEON IR44252LTRPBF

Manufacturer No:

IR44252LTRPBF

Manufacturer:

INFINEON

Package:

SC-74A, SOT-753

Description:

Surface Mount Tape & Reel (TR) Last Time Buy EAR99 Gate Drivers ICs Non-Inverting 1 SC-74A, SOT-753 Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR44252LTRPBF information

INFINEON IR44252LTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR44252LTRPBF.

Type
Parameter

Factory Lead Time
15 Weeks

Mounting Type
Surface Mount

Package / Case
SC-74A, SOT-753

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
µHVIC?

Published
2006

Part Status
Last Time Buy

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Voltage - Supply
5V~18V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
0.95mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G5

Input Type
Non-Inverting

Rise / Fall Time (Typ)
85ns 40ns

Interface IC Type
BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Number of Drivers
1

Driven Configuration
Low-Side

Gate Type
IGBT, N-Channel MOSFET

Current - Peak Output (Source, Sink)
300mA 550mA

Logic Voltage - VIL, VIH
0.6V 2.7V

Built-in Protections
UNDER VOLTAGE

Output Current Flow Direction
SINK

Length
2.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON IR44252LTRPBF.

Datasheets:

infineontechnologies-ir44252ltrpbf-datasheets-9758.pdf

ConflictMineralStatement:

infineon-b43821a4225m000-conflictmineralstatement-7662.pdf

IR44252LTRPBF Overview

In order to increase flexibility, the package SC-74A, SOT-753 is used.There is a package in the form of Tape & Reel (TR).Configuration is supported by 1 drivers.Surface Mount is mounted in the way of the device.Gate drivers can demonstrate Gate driverss superiorGate driversy wGate driversh a 5V~18V supply voltage.This device is designed with a IGBT, N-Channel MOSFET gate type.This device is allowed to operate in a temperature range of -40°C~150°C TJ.This program uses the input type of Non-Inverting.The configuration starts with 5 terminations.With a supply voltage of 15V, it is designed to operate.Mosfet driver utilizes the interface IC BUFFER OR INVERTER BASED PERIPHERAL DRIVER.A gate driver in this series is included in the µHVIC? series.
