INFINEON IR3720MTRPBF
INFINEON IR3720MTRPBF

INFINEON IR3720MTRPBF

Manufacturer No:

IR3720MTRPBF

Manufacturer:

INFINEON

Package:

10-VFDFN Exposed Pad

Description:

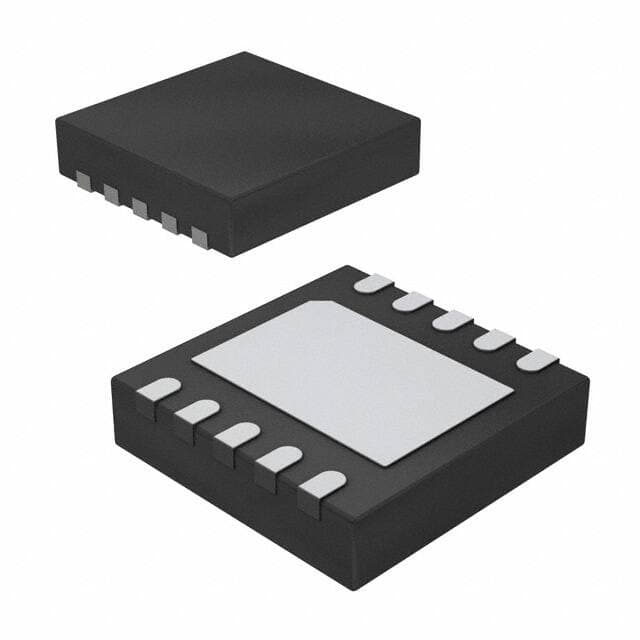

0.5mm PMIC TruePower? Series IR3720MPBF 10 Pin 400kHz 3.3V 10-VFDFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR3720MTRPBF information

INFINEON IR3720MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR3720MTRPBF.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 10-VFDFN Exposed Pad
  • Number of Pins
  • 10
  • Operating Temperature
  • 0°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • TruePower?
  • Published
  • 2008
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 10
  • ECCN Code
  • EAR99
  • Applications
  • Power Supply Monitor
  • Subcategory
  • Power Management Circuits
  • Voltage - Supply
  • 3.135V~3.465V
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Frequency
  • 400kHz
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Number of Outputs
  • 1
  • Qualification Status
  • Not Qualified
  • Output Voltage
  • 1.8V
  • Supply Voltage-Max (Vsup)
  • 3.465V
  • Number of Channels
  • 1
  • Analog IC - Other Type
  • POWER SUPPLY SUPPORT CIRCUIT
  • Operating Supply Current
  • 480?A
  • Nominal Supply Current
  • 660?A
  • Adjustable Threshold
  • NO
  • Accuracy
  • 3.3 %
  • Supply Current-Max (Isup)
  • 0.66mA
  • Nominal Input Voltage
  • 3.3V
  • Threshold Voltage
  • 3.1V
  • Height
  • 880?m
  • Length
  • 3mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON IR3720MTRPBF.

Datasheets:

Other Related Documents:

ConflictMineralStatement:

IR3720MTRPBF Overview


Packaged in Tape & Reel (TR). To save space, it is offered in the 10-VFDFN Exposed Pad package. It is mounted according to Surface Mount. A temperature of 0°C~125°C should be maintained when the device is functioning. As a result of its exceptional performance, it is an excellent choice for Power Supply Monitor. The 3.135V~3.465V supply voltage allows for high efficiency. It uses an analog integrated circuit POWER SUPPLY SUPPORT CIRCUIT. There are 10 terminations in total. Reflow temperature peaks at 260. The base part number of this part is IR3720MPBF, which can be used to find similar parts. The 3.3V supply voltage allows for high efficiency. Access to 1 channels is available. Power Management Circuits contains this device. 10 pins are used in its design. 3.465V is set as Vsup (maximum supply voltage). The DC DC switching regulator is powered by a supply current of 480?A. The device is mounted in accordance with the method of Surface Mount. There is 0.66mA maximum supply current. It is part of the TruePower? series. 1.8V is the constant output voltage. This device has 1 outputs.

IR3720MTRPBF Features


10-VFDFN Exposed Pad package
Mounting type of Surface Mount
Power Management Circuits subcategory


IR3720MTRPBF Applications


There are a lot of Infineon Technologies
IR3720MTRPBF Power Supply Control ICs applications.


  • Video conference system
  • Large conference system engineering
  • Screen lift
  • Monogram lift
  • Projector electric hanger lift
  • Multimedia classroom
  • Multi-purposed meeting room
  • Command and control center
  • Smart home
  • User-available push-button control panel
