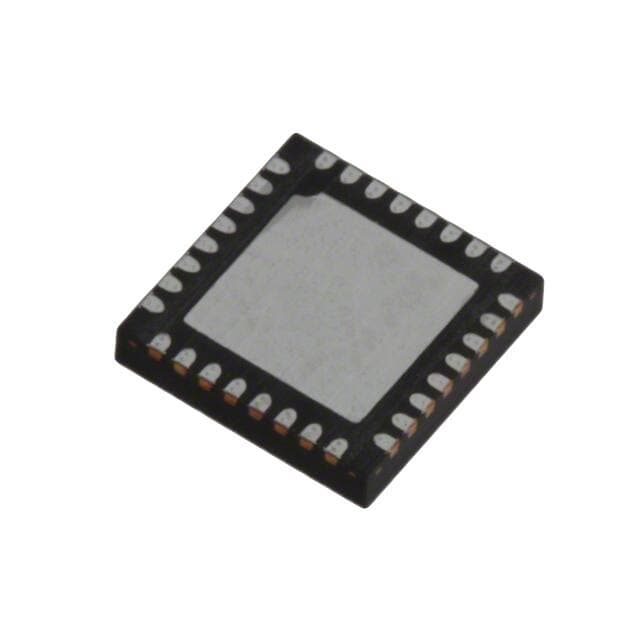

INFINEON IR3621MTR
Manufacturer No:
IR3621MTR
Manufacturer:
Package:
32-VFQFN Exposed Pad
Description:
32 Terminals 5.5V~14.5V 32-Pin IR3621M DC to DC converter IC 2 Outputs 200kHz~500kHz Transistor Driver
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
IR3621MTR information
INFINEON IR3621MTR technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR3621MTR.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 32-VFQFN Exposed Pad
- Number of Pins
- 32
- Operating Temperature
- -40°C~125°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 2005
- JESD-609 Code
- e0
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 32
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Lead (Sn/Pb)
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- QUAD
- Terminal Pitch
- 0.5mm
- Frequency
- 500kHz
- Base Part Number
- IR3621M
- Function
- Step-Down
- Number of Outputs
- 2
- Output Voltage
- 14.4V
- Output Type
- Transistor Driver
- Operating Supply Voltage
- 14.5V
- Output Configuration
- Positive
- Quiescent Current
- 15mA
- Control Features
- Frequency Control, Power Good, Soft Start
- Topology
- Buck
- Control Mode
- VOLTAGE-MODE
- Output Current-Max
- 0.044A
- Frequency - Switching
- 200kHz~500kHz
- Synchronous Rectifier
- Yes
- Duty Cycle (Max)
- 86.5%
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
