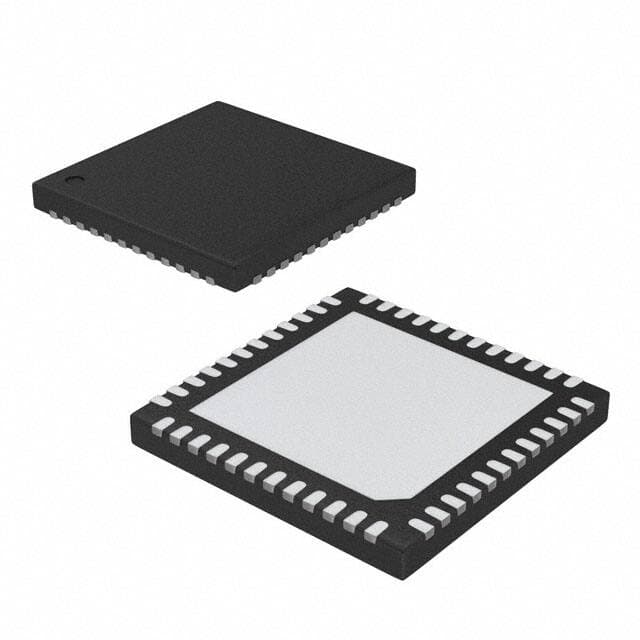

INFINEON IR3536AMTRPBF

Manufacturer No:

IR3536AMTRPBF

Manufacturer:

INFINEON

Package:

48-VFQFN Exposed Pad

Description:

Controller, DDR, Intel VR12, AMD SVI, PVI Specialized Voltage Regulator -20°C~85°C IR3536 48-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR3536AMTRPBF information

INFINEON IR3536AMTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR3536AMTRPBF.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-VFQFN Exposed Pad

Operating Temperature
-20°C~85°C

Packaging
Tape & Reel (TR)

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

ECCN Code
EAR99

Applications
Controller, DDR, Intel VR12, AMD SVI, PVI

Base Part Number
IR3536

Number of Outputs
2

Voltage - Input
3.3V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON IR3536AMTRPBF.

IR3536AMTRPBF Description

Dual-loop digital multi-phase buck controllers, the IR3536A and IR3538A. The IR3536A and IR3538A drive up to 6 and 8 phases, respectively. The IR3536A and IR3538A have a Vtt tracking capability for DDR memory and are completely Intel? VR12 and AMD? SVI/PVI compliant on both loops. In order to achieve great efficiency at the lowest possible cost across the whole load range, the IR3536A and IR3538A both contain IR Efficiency Shaping Technology. The MOSFET gate drive voltage is optimized using IRVariable Gate Drive based on the current load in real-time. According to the load current, IRDynamic Phase Control adds or drops phases. The 1-phase operation and active diode emulation modes of the IR3536A and IR3538A can be programmed to be entered automatically or by command.

IR3536AMTRPBF Features

Auto-Phase Detection with auto-compensation
6-phase & 8-phase dual output PWM Controller?
Phases are flexibly assigned between Loops 1 & 2?
Overclocking & Gaming Mode with Vmax setting??
Compatible with IRATL and 3.3V Tri-state Drivers ?
Per-Loop Fault Protection: OVP, UVP, OCP, OTP, CFP?
Non-Volatile Memory (NVM) for custom configuration
Intel? VR12, AMD? 3.4MHz SVI/PVI & Memory modes
Switching frequency from 200kHz to 1.2MHz per phase
+3.3V supply voltage; -20oC to 85oC ambient operation
Pb-Free, RoHS, 7x7 48-pin & 8x8 56-pin QFN, MSL2package
IREfficiency Shaping Features including Variable Gate Drive and Dynamic Phase Control?
Programmable 1-phase or 2-phase for Light Loads and Active Diode Emulation for Very Light Loads?
IRAdaptive Transient Algorithm (ATA) on both loops minimizes output bulk capacitors and system cost
I2C/SMBus/PMBus system interface for telemetry of Temperature, Voltage, Current & Power for both loops??

IR3536AMTRPBF Applications

DDR Memory with Vtt tracking?
Overclocked & Gaming platforms
Intel ? VR12 & AMD? SVI & PVI-based systems?
