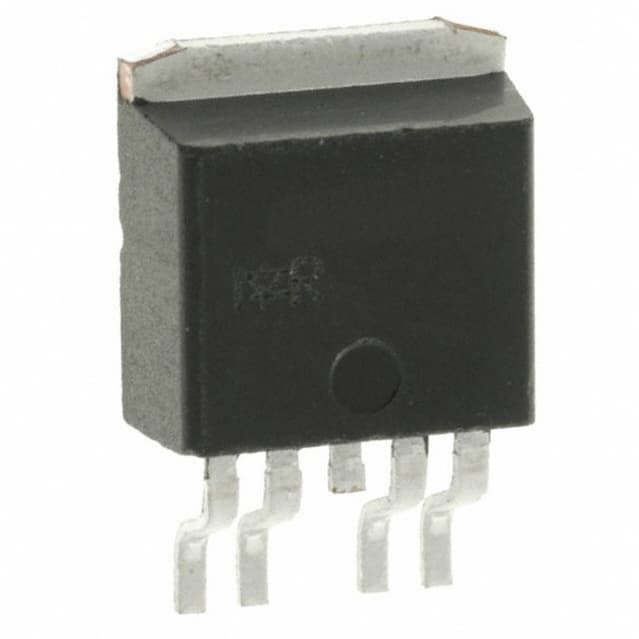

INFINEON IR3310S

Manufacturer No:

IR3310S

Manufacturer:

INFINEON

Package:

TO-263-5

Description:

Bulk 1 Hot Swap Controllers TO-263-5 1

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR3310S information

INFINEON IR3310S technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR3310S.

Type
Parameter

Mount
Surface Mount

Package / Case
TO-263-5

Packaging
Bulk

Published
2004

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

ECCN Code
EAR99

Resistance
5.5mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

Subcategory
Peripheral Drivers

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
14V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
5

JESD-30 Code
R-PSSO-G4

Qualification Status
Not Qualified

Max Output Current
23A

Operating Supply Voltage
28V

Interface
On/Off

Output Configuration
High Side

Output Current per Channel
23A

Driver Number of Bits
1

Fault Protection
Over Temperature

Turn On Time
30 µs

Output Peak Current Limit-Nom
120A

Drain to Source Resistance
7mOhm

Built-in Protections
TRANSIENT; OVER CURRENT; THERMAL

Output Current Flow Direction
SOURCE

Height Seated (Max)
4.55mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for INFINEON IR3310S.

Datasheets:

internationalrectifier-ir3310s-datasheets-2595.pdf

IR3310S Overview

In the TO-263-5 package you will find it.Channel 1 is currently available.A Bulk-shaped package holds it.The 4 terminations total to three.Device SINGLE is located at the terminal position.The device consists of a total of 5 pins.The supply voltage 14V is necessary for high efficiency.Despite its self-contained nature, Peripheral Drivers is a very compact device.As you can see, it is positioned in the direction of Surface Mount.For stable operation, the maximum operating temperature should be 150°C°C.At a minimum working temperature of -40°C degrees Celsius, it maintains its reliability.Consequently, 23A is the maximum output current that can be achieved to meet the operation criteria.There is a 5.5mOhm resistance on this device.

IR3310S Features

The terminal position of 5

IR3310S Applications

There are a lot of International Rectifier
IR3310S hot swap controllers applications.

Safe board insertion and extraction
Industrial computers and servers
Redundant-array-of-independent-disk (RAID) storage
Other forms of communications infrastructure
Board or blade insertion into live backplanes
Backplane
Loads
Distributed power systems
Redundant negative voltage supplies
Central office switching systems
