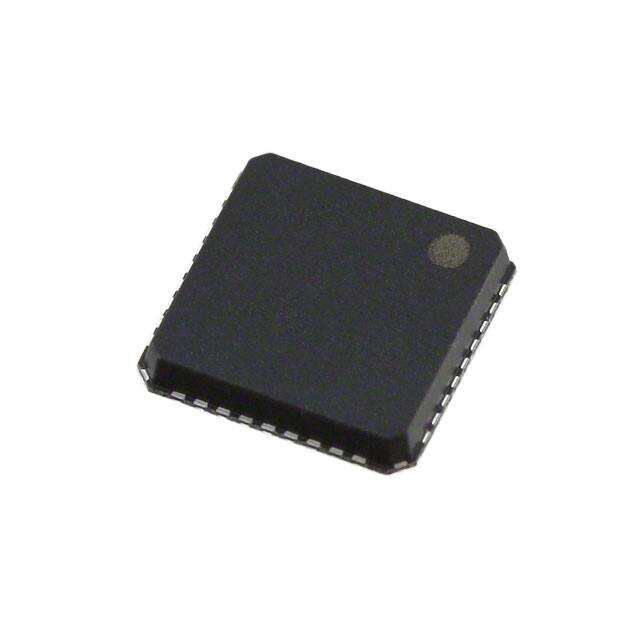

SHARP IR2E49U6

Manufacturer No:

IR2E49U6

Manufacturer:

SHARP

Package:

VQFN

Description:

PMIC 36 Pin 1MHz VQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR2E49U6 information

SHARP IR2E49U6 technical specifications, attributes, parameters and parts with similar specifications to SHARP IR2E49U6.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Number of Pins
36

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Max Operating Temperature
90°C

Min Operating Temperature
-40°C

Max Power Dissipation
1.923W

Frequency
1MHz

Number of Outputs
5

Output Voltage
32V

Operating Supply Voltage
28V

Power Dissipation
1.923W

Max Supply Current
6mA

Topology
Boost

Radiation Hardening
No

Download datasheets and manufacturer documentation for SHARP IR2E49U6.

Datasheets:

sharpmicroelectronics-ir2e49u6-datasheets-5531.pdf

sharp-ir2e49u6-datasheets-1662.pdf

IR2E49U6 Overview

Board space is saved by its VQFN package.This LED driver has 5 outputs.Based on the frequency of 1MHz, it operates.It is configured with 36 pins as its base.The mount is in the direction of Surface Mount.When the maximum supply current is less than 6mA, this device is able to provide high efficiency.It is important not to exceed 90°C in order to ensure stable operation.It is essential to maintain a temperature greater than -40°C in order to achieve stable operation.In order to power systems, 28V voltage is needed.There is 32V voltage at the output terminal.

IR2E49U6 Features

Available in the VQFN package
Frequency of 1MHz
Operating with the supply voltage of 28V
Output voltage of 32V

IR2E49U6 Applications

There are a lot of Sharp Microelectronics
IR2E49U6 LED Driver ICs applications.

Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
