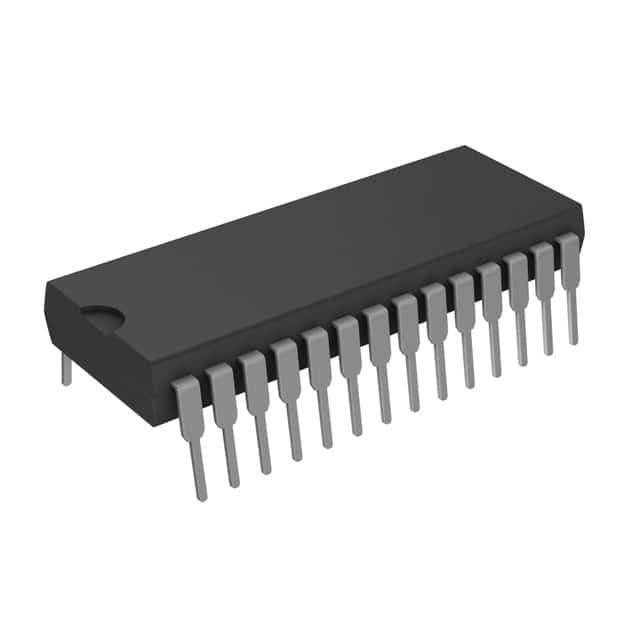

INFINEON IR2130PBF

Manufacturer No:

IR2130PBF

Manufacturer:

INFINEON

Package:

28-DIP (0.600, 15.24mm)

Description:

Through Hole Tube Active EAR99 Gate Drivers ICs Inverting 6 600V V 28-DIP (0.600, 15.24mm) IR2130PBF Half-Bridge

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR2130PBF information

INFINEON IR2130PBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR2130PBF.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
28-DIP (0.600, 15.24mm)

Number of Pins
28

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Published
1996

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Resistance
75Ohm

Subcategory
MOSFET Drivers

Max Power Dissipation
1.5W

Technology
MOS

Voltage - Supply
10V~20V

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Base Part Number
IR2130PBF

Number of Outputs
3

Output Voltage
300mV

Operating Supply Voltage
15V

Nominal Supply Current
30?A

Power Dissipation
1.5W

Output Current
200mA

Propagation Delay
850 ns

Input Type
Inverting

Turn On Delay Time
850 ps

Rise Time
125ns

Fall Time (Typ)
55 ns

Turn-Off Delay Time
425 ns

Rise / Fall Time (Typ)
80ns 35ns

Channel Type
3-Phase

Number of Drivers
6

Turn On Time
0.85 ?s

Output Peak Current Limit-Nom
0.5A

Driven Configuration
Half-Bridge

Gate Type
IGBT, N-Channel MOSFET

Current - Peak Output (Source, Sink)
250mA 500mA

High Side Driver
YES

Logic Voltage - VIL, VIH
0.8V 2.2V

Turn Off Time
0.55 ?s

High Side Voltage - Max (Bootstrap)
600V

Height
5.969mm

Download datasheets and manufacturer documentation for INFINEON IR2130PBF.

IR2130PBF Overview

A higher degree of flexibility is achieved by adopting its 28-DIP (0.600, 15.24mm) package.Tube represents the packaging method.This device is equipped with 6 drivers for its configuration.Ideally, it should be mounted in the direction of Through Hole.In the absence of a power supply voltage of 10V~20V V, it is able to demonstrate its superiority.There is a gate type of IGBT, N-Channel MOSFET in this design.For this device, the temperature range is -40°C~150°C TJ.The input type for this program is Inverting.It's configured with 28 terminations.There are numerous related parts listed under its base part number IR2130PBF.The device is mounted with Through Hole.There are 28 pins available in the device.Mosfet driver is designed specifically to run on 15V volts of power.There is a maximum output current of 500mA that can be achieved.Mosfet driver includes a number of useful electronic components in Mosfet drivers subcategory of MOSFET Drivers.High-side voltage - Max (Bootstrap) can be as low as 600V.In terms of its basis, there are 3 outputs integrated.The output current of this device can be set to 200mA.Considering its maximum power dissipation, 1.5W shows its maximum capacity to transfer and conduct power loss without overheating.In this case, the voltage is 300mV.A voltage of 15V should be set for the operating supply voltage.The system operates at a resistance of 75Ohm.

IR2130PBF Features

Embedded in the Tube package
6 drivers
Employing a gate type of IGBT, N-Channel MOSFET
28 pins
High-side voltage - Max (Bootstrap) of 600V
Maximum power dissipation of 1.5W
Resistance of 75Ohm

IR2130PBF Applications

There are a lot of Infineon Technologies
IR2130PBF gate drivers applications.

Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
