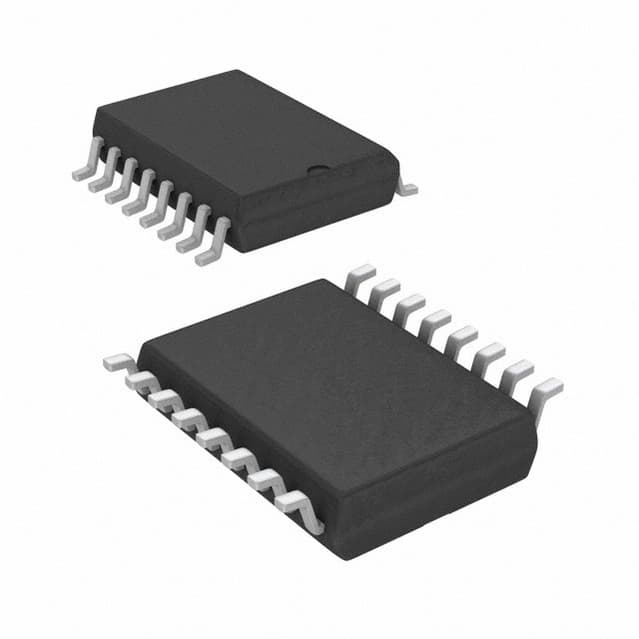

INFINEON IR2110STR

Manufacturer No:

IR2110STR

Manufacturer:

INFINEON

Package:

SOIC

Description:

Tape and Reel EAR99 Gate Drivers ICs 2 SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR2110STR information

INFINEON IR2110STR technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR2110STR.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Packaging
Tape and Reel

Published
2012

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
16

Qualification Status
Not Qualified

Max Output Current
2A

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
20V

Min Supply Voltage
10V

Power Dissipation
1.25W

Propagation Delay
150 ns

Turn On Delay Time
10 ns

Rise Time
35ns

Fall Time (Typ)
25 ns

Turn-Off Delay Time
10 ns

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Channel Type
Independent

Number of Drivers
2

Turn On Time
0.15 ?s

Output Peak Current Limit-Nom
2.5A

High Side Driver
YES

Length
10.3mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for INFINEON IR2110STR.

Datasheets:

internationalrectifier-ir2110str-datasheets-9383.pdf

internationalrectifier-ir2110str-datasheets-0511.pdf

IR2110STR Overview

There is greater flexibility with the SOIC package.The packaging method is indicated by Tape and Reel.A total of 2 drivers are integrated into its configuration.Mosfet driver is based on 16 terminations.Mosfet driver is mounted using Surface Mount.Devices have 16 pins available.The device is specifically designed to function with a supply voltage of 15V V.As its interface IC, HALF BRIDGE BASED MOSFET DRIVER is being employed.An output current as high as 2A can be achieved at maximum power.This subcategory of MOSFET Drivers has a number of useful electronic components.The component has 16 pins.Operating temperatures cannot exceed 125°C.-40°C is the minimum permissible operating temperature.During operation, the supply voltage of 20V is its maximum value.In order for it to operate, the supply voltage of 10V must be maintained.As a rule of thumb, the operating supply voltage should be set to 15V.

IR2110STR Features

Embedded in the Tape and Reel package
2 drivers
16 pins

IR2110STR Applications

There are a lot of International Rectifier
IR2110STR gate drivers applications.

Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
DC-DC Converters
AC-DC Inverters

User Guide
