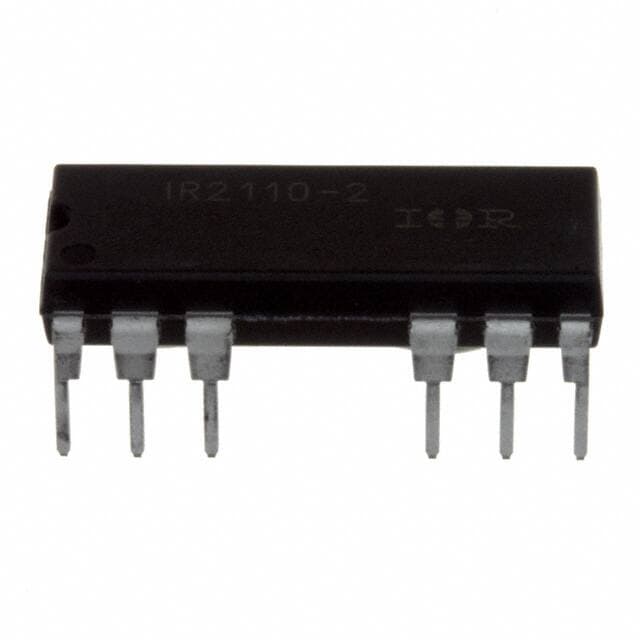

INFINEON IR2110-2PBF

Manufacturer No:

IR2110-2PBF

Manufacturer:

INFINEON

Package:

16-DIP (0.300, 7.62mm), 14 Leads

Description:

Through Hole Tube Obsolete Gate Drivers ICs Non-Inverting 2 500V V 16-DIP (0.300, 7.62mm), 14 Leads IR2110-2PBF Half-Bridge

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR2110-2PBF information

INFINEON IR2110-2PBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR2110-2PBF.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
16-DIP (0.300, 7.62mm), 14 Leads

Number of Pins
14

Supplier Device Package
16-PDIP

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Max Power Dissipation
1.6W

Voltage - Supply
3.3V~20V

Base Part Number
IR2110-2PBF

Number of Outputs
2

Max Output Current
2A

Max Supply Voltage
20V

Min Supply Voltage
10V

Nominal Supply Current
340?A

Power Dissipation
1.6W

Output Current
2A

Max Supply Current
340?A

Propagation Delay
150 ns

Turn On Delay Time
10 ns

Rise Time
35ns

Fall Time (Typ)
25 ns

Turn-Off Delay Time
10 ns

Rise / Fall Time (Typ)
25ns 17ns

Channel Type
Independent

Number of Drivers
2

Driven Configuration
Half-Bridge

Gate Type
IGBT, N-Channel MOSFET

Current - Peak Output (Source, Sink)
2A 2A

Logic Voltage - VIL, VIH
6V 9.5V

High Side Voltage - Max (Bootstrap)
500V

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for INFINEON IR2110-2PBF.

Datasheets:

infineontechnologies-ir2113strpbf-datasheets-8592.pdf

infineon-ir21102pbf-datasheets-4062.pdf

ConflictMineralStatement:

infineon-b43821a4225m000-conflictmineralstatement-7662.pdf

IR2110-2PBF Overview

The 16-DIP (0.300, 7.62mm), 14 Leads package offers greater flexibility.Tube is the form of the package.For its configuration, it incorporates 2 drivers.There is a mounting bracket in the way of Through Hole.Using a 3.3V~20V supply voltage, gate drivers is capable of demonstrating Gate driverss superiorGate driversy.This gate type has a IGBT, N-Channel MOSFET design.-40°C~150°C TJ is the allowed temperature range for this device.Non-Inverting is used as its input type.The base part number IR2110-2PBF refers to a number of related parts.In this case, Through Hole indicates how the device is mounted.When designing, the device is configured with 14 pins.There is a maximum output current of 2A.Maximum (Bootstrap) voltage is 500V.For its basis, 2 outputs are integrated.Mosfet gate drivers supports a current output of 2A.125°C is the maximum acceptable operating temperature.-40°C is the minimum operating temperature.Its maximum power dissipation of 1.6W shows its power loss capacity without overheating.Mosfet gate drivers is recommended that you keep the supply current at 340?A in order to achieve greater stabilMosfet gate driversy.Its maximum operating voltage is 20V.This device is designed to operate with a voltage of 10V.

IR2110-2PBF Features

Embedded in the Tube package
2 drivers
Employing a gate type of IGBT, N-Channel MOSFET
14 pins
High-side voltage - Max (Bootstrap) of 500V
Maximum power dissipation of 1.6W

IR2110-2PBF Applications

There are a lot of Infineon Technologies
IR2110-2PBF gate drivers applications.

Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
