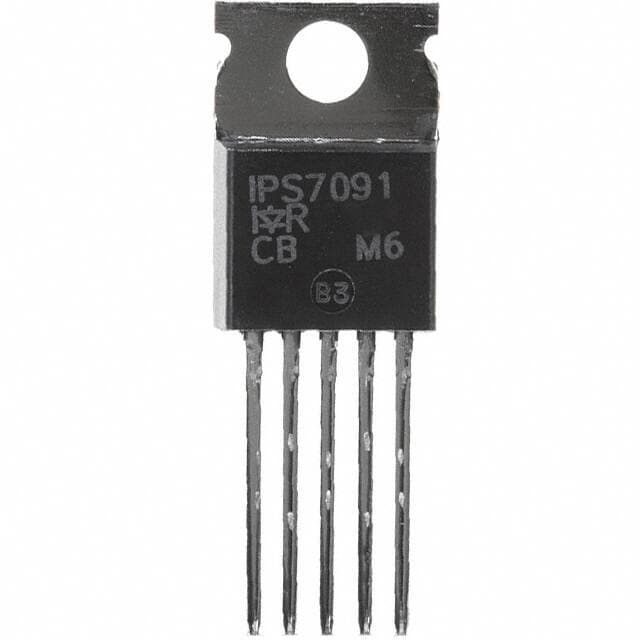

INFINEON IPS7091PBF

Manufacturer No:

IPS7091PBF

Manufacturer:

INFINEON

Package:

TO-220-5

Description:

PMIC IPS7091PBF 5 Pin 14V TO-220-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IPS7091PBF information

INFINEON IPS7091PBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IPS7091PBF.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-5

Number of Pins
5

Operating Temperature
-40°C~150°C

Packaging
Tube

Published
2007

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Type
Switch

Resistance
80mOhm

Terminal Finish
TIN

Power Rating
2.5W

Max Power Dissipation
1.25W

Terminal Position
SINGLE

Number of Functions
1

Supply Voltage
14V

Current Rating
5A

Base Part Number
IPS7091PBF

Number of Outputs
1

Output Voltage
35V

Max Output Current
5A

Voltage
5.5V

Max Supply Voltage
5.5V

Min Supply Voltage
4V

Nominal Supply Current
2.5mA

Current
1.5A

Output Configuration
High Side

Power Dissipation
1.25W

Output Current
1.5A

Input Type
Non-Inverting

Clamping Voltage
70V

Output Current per Channel
1.5A

Rise Time
7?s

Fall Time (Typ)
6 ?s

Nominal Input Voltage
5.5V

Voltage - Load
6V~35V

Input Current
40?A

Output Peak Current Limit-Nom
5A

Rds On (Typ)
80m ?

Drain to Source Resistance
80mOhm

Built-in Protections
OVER CURRENT; THERMAL

Height
9.02mm

Length
10.668mm

Width
4.826mm

Download datasheets and manufacturer documentation for INFINEON IPS7091PBF.

Datasheets:

infineontechnologies-ips7091gpbf-datasheets-1793.pdf

ConflictMineralStatement:

infineon-b43821a4225m000-conflictmineralstatement-7662.pdf

IPS7091PBF Overview

A Tube is used to package it.In the TO-220-5 package, it is included.The LED driver is mounted as Through Hole.To ensure reliable operation, set the temperature to -40°C~150°C.As a default, the output is set to 1.It is a member of the IPS7091PBF family.In total, there are 5 terminations.The operation is carried out using the 5 pins.As far as the lighting driver is concerned, there are 1 functions.The maximum output current is reduced to 5A to meet the operation criteria.Using a voltage of 14V allows for high efficiency.Through Hole is mounted in the way of this lighting driver.It has a resistance of 80mOhm.This case has the output current set to 1.5A.A supply voltage of 65V is recommended for maximum efficiency.This LED driving board can handle voltages up to 5.5VV.Supply voltages as low as 4VV are possible.For this electrical component, Switch is the classification.

IPS7091PBF Features

Supplied from 14V
Resistance of 80mOhm

IPS7091PBF Applications

There are a lot of Infineon Technologies
IPS7091PBF Power Switches ICs applications.

Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
