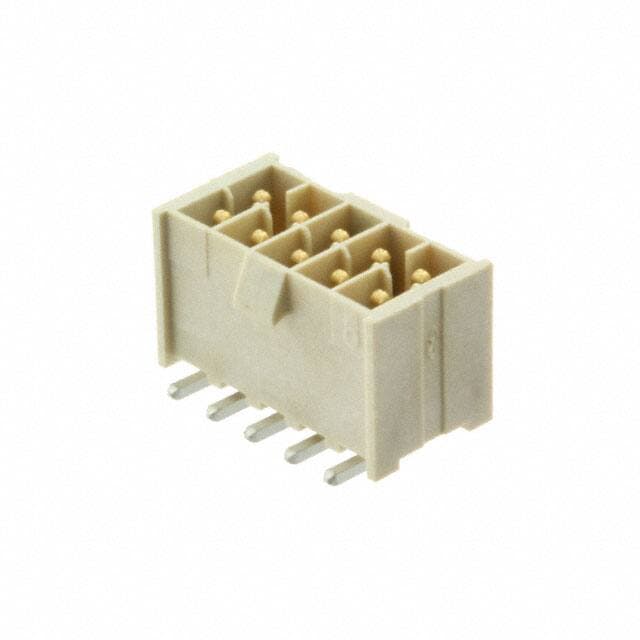

SAMTEC IPL1-105-02-L-D-K-TR
Manufacturer No:
IPL1-105-02-L-D-K-TR
Manufacturer:
Package:
Description:
Mini Mate® IPL1 Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 10-Position Board to Cable/Wire 0.320 8.13mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
IPL1-105-02-L-D-K-TR information
SAMTEC IPL1-105-02-L-D-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC IPL1-105-02-L-D-K-TR.
- Type
- Parameter
- Factory Lead Time
- 3 Weeks
- Contact Material
- Phosphor Bronze
- Mounting Type
- Surface Mount
- Contact Shape
- Square
- Insulation Material
- Liquid Crystal Polymer (LCP)
- Operating Temperature
- -55°C~125°C
- Packaging
- Tape & Reel (TR)
- Series
- Mini Mate® IPL1
- Published
- 2014
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Header
- Number of Positions
- 10
- Number of Rows
- 2
- Voltage - Rated
- 675VAC 954VDC
- HTS Code
- 8536.69.40.40
- Fastening Type
- Locking Ramp
- Contact Finish - Mating
- Gold
- Contact Type
- Male Pin
- Mixed Contacts
- YES
- Total Number of Contacts
- 10
- Insulation Height
- 0.320 8.13mm
- Number of Positions Loaded
- All
- Pitch - Mating
- 0.100 2.54mm
- Insulation Color
- Natural
- Number of Conductors
- ONE
- Reference Standard
- UL
- Reliability
- COMMERCIAL
- Body Length or Diameter
- 0.56 inch
- Row Spacing - Mating
- 0.100 (2.54mm)
- Shrouding
- Shrouded - 4 Wall
- Contact Finish - Post
- Tin
- Contact Length - Mating
- 0.215 5.46mm
- Contact Finish Thickness - Mating
- 10.0μin 0.25μm
- Material Flammability Rating
- UL94 V-0
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for SAMTEC IPL1-105-02-L-D-K-TR.
IPL1-105-02-L-D-K-TR Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the Mini Mate® IPL1 Series of products.The device runs in -55°C~125°C Operating Temperature.
IPL1-105-02-L-D-K-TR Features
Mini Mate® IPL1 series
IPL1-105-02-L-D-K-TR Applications
There are a lot of Samtec Inc.
IPL1-105-02-L-D-K-TR Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
