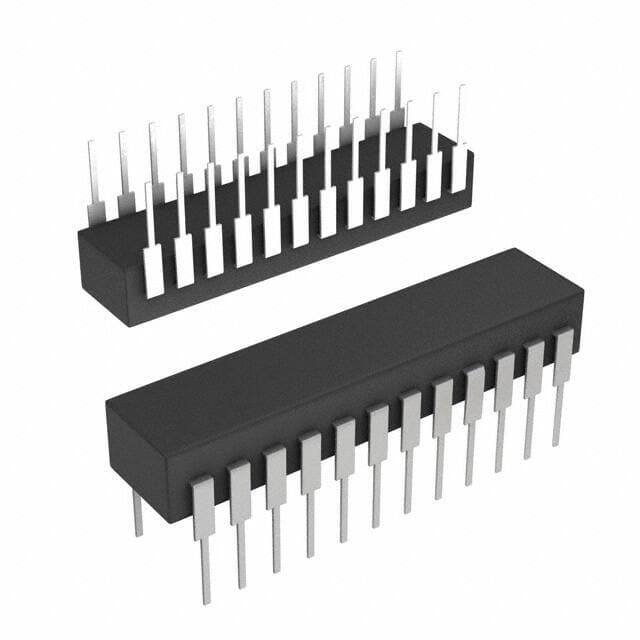

Renesas IP82C54

Manufacturer No:

IP82C54

Manufacturer:

Renesas

Package:

24-DIP (0.600, 15.24mm)

Description:

5V Programmable Timer Programmable Timers 82C54 24 Pins 8MHz 5V 24-DIP (0.600, 15.24mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IP82C54 information

Renesas IP82C54 technical specifications, attributes, parameters and parts with similar specifications to Renesas IP82C54.

Type
Parameter

Mounting Type
Through Hole

Package / Case
24-DIP (0.600, 15.24mm)

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Tube

Published
1996

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Type
Programmable Timer

Terminal Finish
Matte Tin (Sn) - annealed

HTS Code
8542.39.00.01

Technology
CMOS

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
2.54mm

Frequency
8MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
82C54

Pin Count
24

Qualification Status
Not Qualified

Number of Bits
16

Current - Supply
10mA

External Data Bus Width
8

Number of Timers
3

Information Access Method
PARALLEL, DIRECT ADDRESS

Length
31mm

Height Seated (Max)
6.35mm

Width
15.24mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IP82C54.

Datasheets:

renesaselectronicsamericainc-cs82c54z96-datasheets-6034.pdf

IP82C54 Overview

A 24-DIP (0.600, 15.24mm)-shaped packaging surrounds the digital timer. There is 8MHz frequency set on the programmable timer.It is used to pack in Tube case. Through Hole is the recommended mounting type. The programmable timer can supply a voltage of 4.5V~5.5V. The type of chips can be divided into Programmable Timer. The operating temperature of this timer clock is -40°C~85°C. To keep the clock timer's supply current at 10mA. It is based on 82C54. The supply voltage of the programmable timer can rate 5V. The sum of the IC chip pins is 24 . The number of the chip's terminations sums up to 24.
