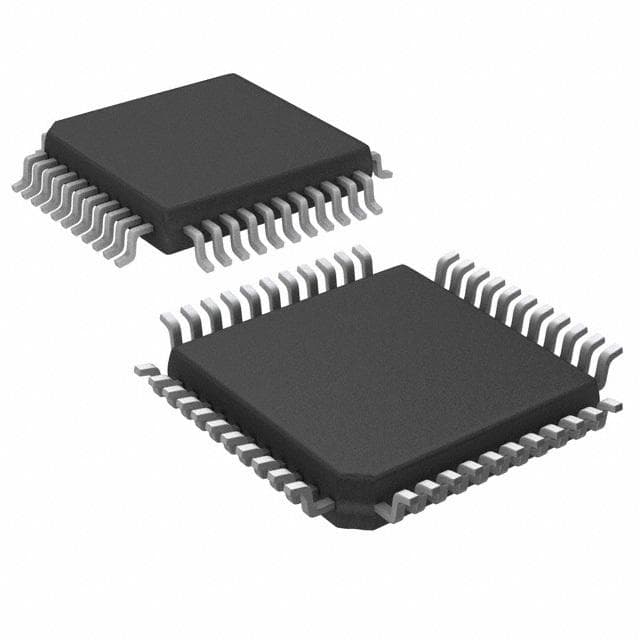

Renesas IMQ82C55AZ

Manufacturer No:

IMQ82C55AZ

Manufacturer:

Renesas

Package:

QFP

Description:

44 Termination 0.8mm 5V I/O Expander 44 Pin 5V QFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IMQ82C55AZ information

Renesas IMQ82C55AZ technical specifications, attributes, parameters and parts with similar specifications to Renesas IMQ82C55AZ.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Package / Case
QFP

Number of Pins
44

Packaging
Bulk

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Subcategory
Parallel IO Port

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
44

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
4.5V

Number of I/O
24

Number of Ports
3

uPs/uCs/Peripheral ICs Type
PARALLEL IO PORT, GENERAL PURPOSE

Length
10mm

Height Seated (Max)
2.45mm

Width
10mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas IMQ82C55AZ.

Datasheets:

intersil-imq82c55az-datasheets-6584.pdf

IMQ82C55AZ Overview

With 24 I/Os, it can be programmed.The device is packaged with the QFP.In addition to the Bulk case, it is also available in other cases as well.Its terminations, as a whole, are in the 44 direction.Total pin count on the part is 44.Device 5V provides voltage.To run 260, we rely on this part's peak reflow temperature.A total of five 3 ports are available on the device.At 5V, the power can be delivered.The device is equipped with 44 pins.It is possible to mount the part using Surface Mount.ICs with PARALLEL IO PORT, GENERAL PURPOSE uPs/uCs/Peripheral Types are included.The Parallel IO Port series includes this model.At 85°C, the maximum temperature is reached.In this device, the minimum working temperature cannot be lower than -40°C.
