JAE IL-AG5-7P-S3L2
JAE IL-AG5-7P-S3L2

JAE IL-AG5-7P-S3L2

Manufacturer No:

IL-AG5-7P-S3L2

Manufacturer:

JAE

Package:

Description:

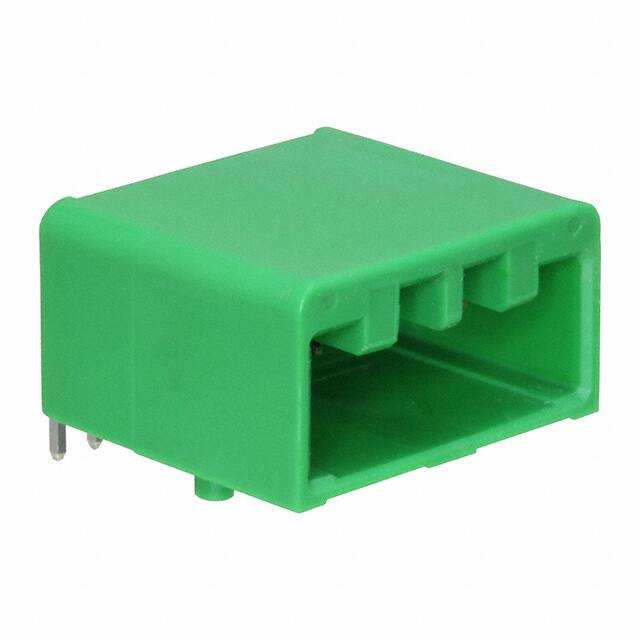

IL-AG5 Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT) 7-Position Board to Cable/Wire 0.433 11.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IL-AG5-7P-S3L2 information

JAE IL-AG5-7P-S3L2 technical specifications, attributes, parameters and parts with similar specifications to JAE IL-AG5-7P-S3L2.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT)
  • Housing Material
  • PBT
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • IL-AG5
  • Published
  • 2003
  • Feature
  • Board Guide
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 7
  • Applications
  • Automotive
  • Number of Rows
  • 1
  • Gender
  • Male
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 3A per Contact
  • Insulation Height
  • 0.433 11.00mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.098 2.50mm
  • Insulation Color
  • Green
  • Contact Length - Post
  • 0.138 3.50mm
  • Shrouding
  • Shrouded - 4 Wall
  • Contact Length - Mating
  • 0.331 8.40mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for JAE IL-AG5-7P-S3L2.

Datasheets:

IL-AG5-7P-S3L2 Overview


This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the IL-AG5 Series.There is the possibility of using the device for Automotive.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~85°C.
