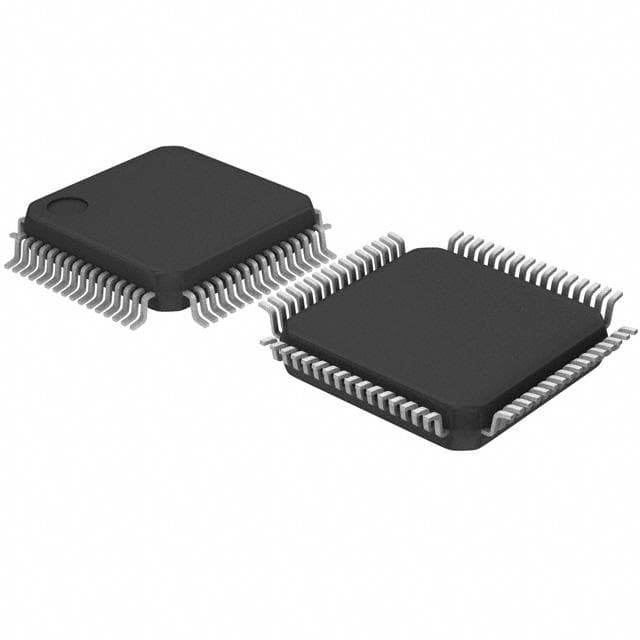

Renesas IDT82V1054APFG

Manufacturer No:

IDT82V1054APFG

Manufacturer:

Renesas

Package:

TQFP

Description:

64 Terminations 3.3V 64 Pin Telecom device 1 Functions Min 3.135V V Max 3.465V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT82V1054APFG information

Renesas IDT82V1054APFG technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT82V1054APFG.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
64

Published
2004

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
64

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
64

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Temperature Grade
INDUSTRIAL

Interface
Serial

Min Supply Voltage
3.135V

Operating Mode
SYNCHRONOUS

Telecom IC Type
PCM CODEC

Filter
YES

Companding Law
A/MU-LAW

Length
10mm

Height Seated (Max)
1.6mm

Width
10mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT82V1054APFG.

Datasheets:

integrateddevicetechnology-idt82v1054apfg-datasheets-7359.pdf

IDT82V1054APFG Overview

To save board space, the TQFP package is used.Surface Mount is the way telecom switching is mounted.Telecom switching configuration has 64 terminations.It operates with a voltage of 3.3V.Telecom interfaces contain 64 pins.As a telecom IC, PCM CODEC is used.In order to provide designers with a great deal of flexibility, this telecom circuit operates on the supply voltage of 3.3V.A minimum temperature value -40°C is set to ensure normal operation.In order to maintain normal operation, 85°C must be set at its maximum value.During design, 1 functions are configured.Ideally, the voltage should be at least 3.135V.If the voltage supplied is lower than 3.465V, telecommunications device should be used.64 telecom products have pins designed specifically for their configuration.

IDT82V1054APFG Features

Available in the TQFP package
PCM CODEC as telecom IC type
Operating supply voltage of 3.3V

IDT82V1054APFG Applications

There are a lot of Integrated Device Technology (IDT)
IDT82V1054APFG Telecom applications.

Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Frame Relay Switches and Access Devices (FRADS)
ISDN Primary Rate Interfaces (PRA)
PBXs channel bank
