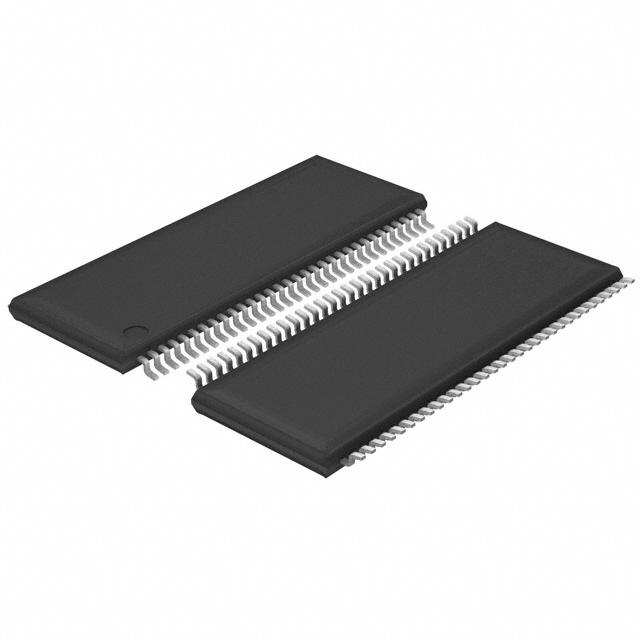

Renesas IDT74SSTVN16859CPAG

Manufacturer No:

IDT74SSTVN16859CPAG

Manufacturer:

Renesas

Package:

TFSOP

Description:

13 Bit 2.5V Specialty Logic IC 0.5mm 2.5V TFSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT74SSTVN16859CPAG information

Renesas IDT74SSTVN16859CPAG technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT74SSTVN16859CPAG.

Type
Parameter

Mount
Surface Mount

Package / Case
TFSOP

Published
2007

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
64

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Other Logic ICs

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
64

JESD-30 Code
R-PDSO-G64

Qualification Status
Not Qualified

Operating Supply Voltage
2.7V

Power Supplies
2.5V

Temperature Grade
COMMERCIAL

Number of Bits
13

Family
SSTV

Logic Function
Buffer

Output Polarity
TRUE

Logic IC Type
D FLIP-FLOP

Trigger Type
POSITIVE EDGE

Propagation Delay (tpd)
2.4 ns

fmax-Min
220 MHz

Length
17mm

Height Seated (Max)
1.1mm

Width
6.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT74SSTVN16859CPAG.

IDT74SSTVN16859CPAG Overview

It is accessible to the TFSOP package.The voltage of 2.5V is supplied to make sure that the device is able to operate normally.The memory features a size of 13 bits to store information.The number of all component pins adds up to 64.Signals are prevented from reflecting off the end of the transmission line through 64 terminations.It is mounted in the way of Surface Mount.It can be included into the subcategory of Other Logic ICs.The supply voltage of 2.7V works as an important factor for its operation.The power supplies of 2.5V should be maintained for convenient use.The electronic part belongs to the family of SSTV that is optimized for high quality and reliable performance.What is much essential is that its operating temperature should not exceed the maximum value of 70°C.What is much essential is that its operating temperature should not be lower than the minimum value of 0°C.D FLIP-FLOP is adopted as its logic IC type.
