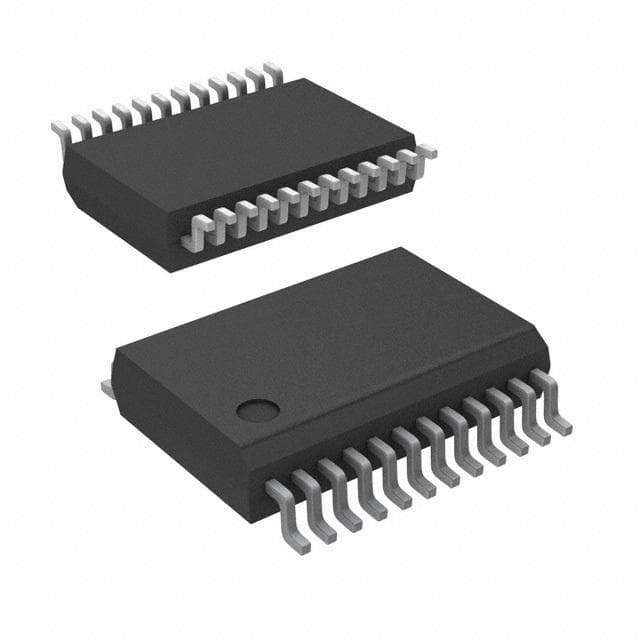

Renesas IDT74LVC4245APYG

Manufacturer No:

IDT74LVC4245APYG

Manufacturer:

Renesas

Package:

SSOP

Description:

Voltage Translators & Level Shifters SSOP 1 (Unlimited)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT74LVC4245APYG information

Renesas IDT74LVC4245APYG technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT74LVC4245APYG.

Type
Parameter

Package / Case
SSOP

Surface Mount
YES

Published
2006

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
5V SUPPLY FOR PORT A

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

JESD-30 Code
R-PDSO-G24

Qualification Status
Not Qualified

Output Type
Voltage

Supply Voltage-Max (Vsup)
3.6V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Number of Ports
2

Number of Bits
8

Propagation Delay
6.7 ns

Family
LVC/LCX/Z

Logic Function
Level Shifter

Output Characteristics
3-STATE

Output Polarity
TRUE

Logic IC Type
BUS TRANSCEIVER

Height Seated (Max)
2mm

Width
5.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT74LVC4245APYG.

IDT74LVC4245APYG Overview

SSOP contains it.Voltage is the output configured for it.Transmission lines are terminated using 24 terminations.Power comes from a voltage of 3.3V.There are 24 pins on this device.8 Bits are used in the design of this electronic part.1 is the number of channels.A BUS TRANSCEIVER logic IC is used.In transmission lines, there are 2 terminations, which correspond to the characteristic impedance of the line.Electronic devices like this belong to the family LVC/LCX/Z.5V SUPPLY FOR PORT A are other characteristics of it.In order to operate normally, Vsup must remain above 2.7V.Temperatures above -40°C are recommended.A temperature below 85°C should be used for operation.

IDT74LVC4245APYG Features

SSOP package
24 pin count

IDT74LVC4245APYG Applications

There are a lot of Integrated Device Technology (IDT)
IDT74LVC4245APYG voltage translators & level shifters applications.
