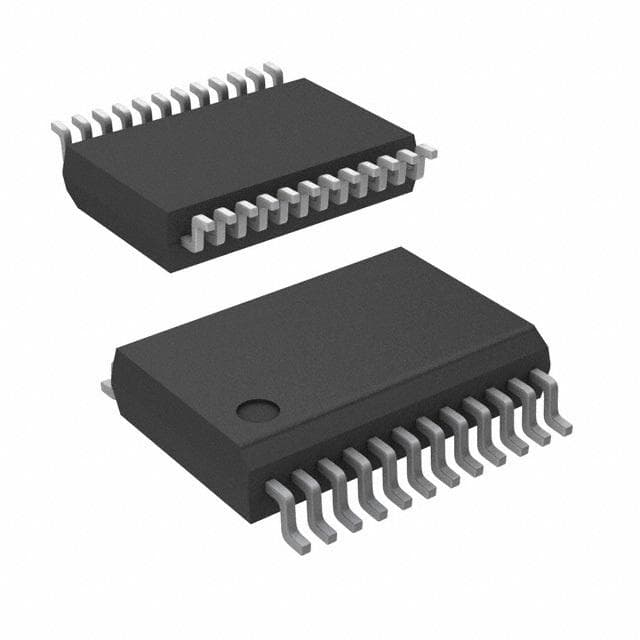

Renesas IDT74CBTLV3862PYG8

Manufacturer No:

IDT74CBTLV3862PYG8

Manufacturer:

Renesas

Package:

SSOP

Description:

24 Terminations Signal switch 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT74CBTLV3862PYG8 information

Renesas IDT74CBTLV3862PYG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT74CBTLV3862PYG8.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

JESD-30 Code
R-PDSO-G24

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.3V

Number of Bits
10

Family
CBTLV/3B

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

Logic IC Type
BUS DRIVER

High Level Output Current
64mA

Propagation Delay (tpd)
0.25 ns

Low Level Output Current
15mA

Independent Circuits
1

Length
8.2mm

Height Seated (Max)
2mm

Width
5.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT74CBTLV3862PYG8.

IDT74CBTLV3862PYG8 Overview

As a means of saving space, digital switch is provided in the SSOP.Tape & Reel (TR) represents its packaging.Its basic configuration includes terminations in the 24 range.The multiplexer is supplied with 2.5V voltage.A component pin count of 24 is found on this turn signal switch.As a result, GULL WING represents the end of the conductors.This supply type employs Single.The multiplexer ic is mounted in the direction of Surface Mount.The logic switch is a member of the CBTLV/3B family.There are 10 bits in signal multiplexer.Keeping the minimum supply voltage (Vsup) at 2.3V prevents some unnecessary failures.Vsup (maximum supply voltage) should be kept as 3.6V to prevent unnecessary failures.The signal switching operates with a resistance of 2.In this case, operating this signal switch at 85°C is acceptable.Keeping the temperature of the multiplexer at -40°C is the minimum operating temperature.As its logic IC, it uses BUS DRIVER.

IDT74CBTLV3862PYG8 Features

Supplied in the SSOP package
Adopting a supply type of Single
BUS DRIVER as the logic IC

IDT74CBTLV3862PYG8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT74CBTLV3862PYG8 Signal Switches / Multiplexers / Decoders applications.

Transmission from the computer system of a satellite
Time division multiplexing system
Frequency multiplexing system
A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Image transmission
