Renesas IDT72V3682L15PF
Renesas IDT72V3682L15PF

Renesas IDT72V3682L15PF

Manufacturer No:

IDT72V3682L15PF

Manufacturer:

Renesas

Package:

LQFP

Description:

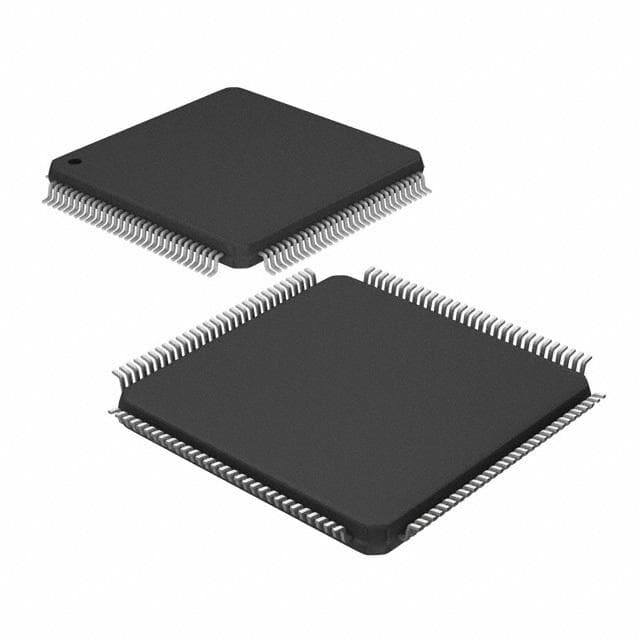

120 Terminations FIFO memory IC 15 ns

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT72V3682L15PF information

Renesas IDT72V3682L15PF technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT72V3682L15PF.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • LQFP
  • Published
  • 2009
  • JESD-609 Code
  • e0
  • Moisture Sensitivity Level (MSL)
  • 4 (72 Hours)
  • Number of Terminations
  • 120
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn85Pb15)
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Additional Feature
  • MAIL BOX BYPASS REGISTER
  • HTS Code
  • 8542.32.00.71
  • Subcategory
  • FIFOs
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 240
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.4mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 120
  • JESD-30 Code
  • S-PQFP-G120
  • Supply Voltage-Max (Vsup)
  • 3.45V
  • Power Supplies
  • 3.3V
  • Temperature Grade
  • COMMERCIAL
  • Supply Voltage-Min (Vsup)
  • 3.15V
  • Operating Mode
  • SYNCHRONOUS
  • Clock Frequency
  • 66.7MHz
  • Access Time
  • 15 ns
  • Organization
  • 16KX36
  • Memory Width
  • 36
  • Standby Current-Max
  • 0.005A
  • Memory Density
  • 589824 bit
  • Parallel/Serial
  • PARALLEL
  • Memory IC Type
  • BI-DIRECTIONAL FIFO
  • Output Enable
  • YES
  • Length
  • 14mm
  • Height Seated (Max)
  • 1.6mm
  • Width
  • 14mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT72V3682L15PF.

Datasheets:

IDT72V3682L15PF Overview


You can find FIFO memory chip in package LQFP .Mounting it in Surface Mount is recommended.When the supply voltage is 3.3V , high efficiency is possible.FIFO means contains a total of 120 terminations.The FIFO products must be run at a minimum temperature of 0°C degrees Celsius to ensure reliability.A memory logic's maximum operating temperature of 70°C degrees Celsius assures stable operation.It is self-contained in FIFOs .A BI-DIRECTIONAL FIFO memory type IC is used in the part.The FIFO memory IC has a total of 120 pins.The component normally owns 3.3V power supplies.With the help of this FIFO memory, MAIL BOX BYPASS REGISTER can also be generated.The FIFO memory IC's maximum supply voltage is set to 3.45V .In order to ensure normal operation, the supply voltage (Vsup) should be kept above 3.15V .In this FIFO memory IC, the clock runs at frequency 66.7MHz .

IDT72V3682L15PF Features


FIFOs category
Clock frequency of 66.7MHz


IDT72V3682L15PF Applications


There are a lot of Integrated Device Technology (IDT)
IDT72V3682L15PF FIFOs Memory applications.


  • Telecommunication
  • Network switching/routing
  • Computer networks
  • Network bridges
  • Switches
  • Routers
  • Cameras
  • Multimedia
  • TVs
  • Computers
