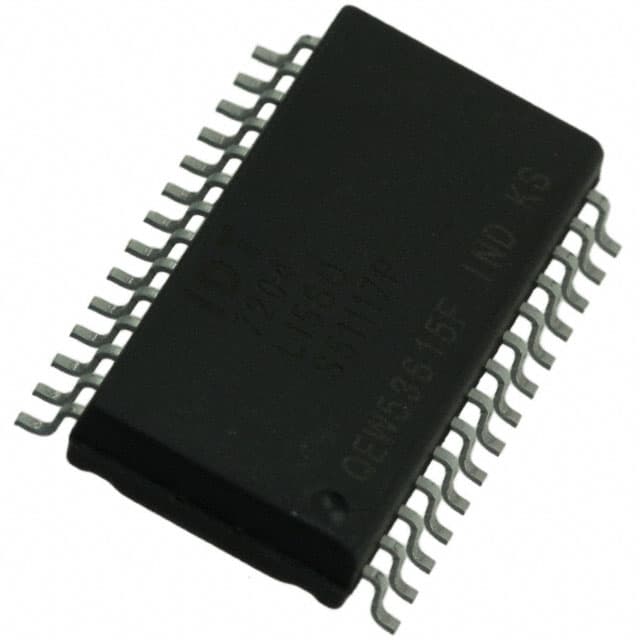

Renesas IDT7204L15SO

Manufacturer No:

IDT7204L15SO

Manufacturer:

Renesas

Package:

SOIC

Description:

28 Terminations FIFO memory IC 15 ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT7204L15SO information

Renesas IDT7204L15SO technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT7204L15SO.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
RETRANSMIT

HTS Code
8542.32.00.71

Subcategory
FIFOs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

JESD-30 Code
R-PDSO-G28

Power Supplies
5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
4.5V

Max Supply Current
120mA

Clock Frequency
40MHz

Access Time
15 ns

Organization
4KX9

Output Characteristics
3-STATE

Memory Width
9

Standby Current-Max
0.002A

Memory Density
36864 bit

Parallel/Serial
PARALLEL

Memory IC Type
OTHER FIFO

Bus Directional
Unidirectional

Retransmit Capability
Yes

FWFT Support
No

Output Enable
NO

Cycle Time
25 ns

Length
18.3642mm

Height Seated (Max)
3.048mm

Width
8.763mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT7204L15SO.

Datasheets:

integrateddevicetechnology-idt7204l15so-datasheets-5855.pdf

IDT7204L15SO Overview

You can find FIFO memory chip in package SOIC .Mounting it in Surface Mount is recommended.When the supply voltage is 5V , high efficiency is possible.FIFO means contains a total of 28 terminations.FIFO design requires a maximum current of 120mA to operate.The FIFO products must be run at a minimum temperature of 0°C degrees Celsius to ensure reliability.A memory logic's maximum operating temperature of 70°C degrees Celsius assures stable operation.It is self-contained in FIFOs .A OTHER FIFO memory type IC is used in the part.The FIFO memory IC has a total of 28 pins.The component normally owns 5V power supplies.With the help of this FIFO memory, RETRANSMIT can also be generated.The FIFO memory IC's maximum supply voltage is set to 5.5V .In order to ensure normal operation, the supply voltage (Vsup) should be kept above 4.5V .In this FIFO memory IC, the clock runs at frequency 40MHz .

IDT7204L15SO Features

FIFOs category
Clock frequency of 40MHz

IDT7204L15SO Applications

There are a lot of Integrated Device Technology (IDT)
IDT7204L15SO FIFOs Memory applications.

Telecommunication
Network switching/routing
Computer networks
Network bridges
Switches
Routers
Cameras
Multimedia
TVs
Computers
