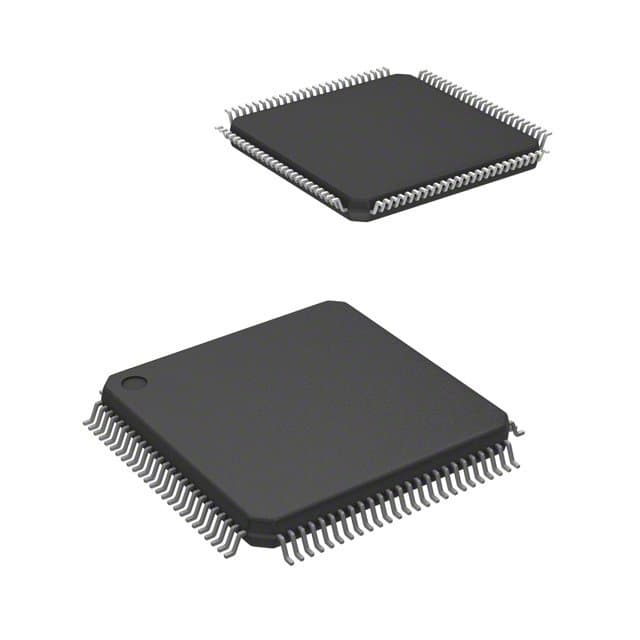

Renesas IDT71V632S5PFI

Manufacturer No:

IDT71V632S5PFI

Manufacturer:

Renesas

Package:

TQFP

Description:

Surface Mount 100 Pin Memory IC 2 Mb kb 20mm mm 200mA mA 32b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V632S5PFI information

Renesas IDT71V632S5PFI technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V632S5PFI.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
100

Published
2015

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Frequency
100MHz

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
100

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Interface
Parallel

Max Supply Voltage
3.63V

Min Supply Voltage
3.135V

Number of Ports
1

Nominal Supply Current
200mA

Memory Type
RAM, SRAM

Access Time
5 ns

Organization
64KX32

Output Characteristics
3-STATE

Memory Width
32

Address Bus Width
16b

Density
2 Mb

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
32b

Length
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V632S5PFI.

Datasheets:

integrateddevicetechnology-idt71v632s5pfi-datasheets-2235.pdf

IDT71V632S5PFI Overview

In terms of its memory type, it can be classified as RAM, SRAM. The case is embedded in TQFP. On the chip, there are 100 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 3.3V is required for the operation of this memory device. An 100-pin package is used to package this memory device. A memory device like this has 100 pins, indicating that there are 100 memory locations on the device. There is a note stating that this memory chip operates at 3.3V. It uses Surface Mount mounting, which is an efficient, straightforward mounting method. As far as its nominal supply current is concerned, this memory component carries a rating of 200mA. It also features PIPELINED ARCHITECTURE to boost system performance despite all its merits. In this chip, there are 1 ports providing read and/or write access to one memory address. A memory mapped I/O port address of COMMON bits is used in this device. A minimum operating temperature of -40°C is required for this device. It should not be operated above 85°C°C. The SRAMs component is usually regarded as a type of this component. This part should have a minimum supply voltage of at least 3.135V volts in order to function correctly. This part requires a minimum voltage of 3.63V. The frequency of data processing on this memory chip is 100MHz.

IDT71V632S5PFI Features

Package / Case: TQFP
100 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 100MHz
100MHz terminals

IDT71V632S5PFI Applications

There are a lot of Integrated Device Technology (IDT)
IDT71V632S5PFI Memory applications.

eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
