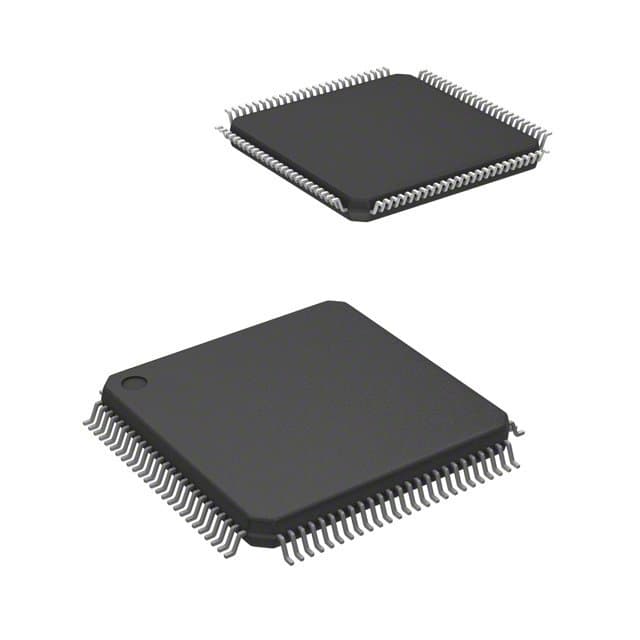

Renesas IDT71V632S5PF

Manufacturer No:

IDT71V632S5PF

Manufacturer:

Renesas

Package:

LQFP

Description:

3.3V V 100 Pin Memory IC 20mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V632S5PF information

Renesas IDT71V632S5PF technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V632S5PF.

Type
Parameter

Package / Case
LQFP

Surface Mount
YES

Published
2015

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
PIPELINED ARCHITECTURE

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
100

JESD-30 Code
R-PQFP-G100

Supply Voltage-Max (Vsup)
3.63V

Power Supplies
3.3V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
3.135V

Interface
Parallel

Number of Ports
1

Memory Type
RAM, SRAM

Operating Mode
SYNCHRONOUS

Clock Frequency
100MHz

Supply Current-Max
0.2mA

Organization
64KX32

Output Characteristics
3-STATE

Memory Width
32

Standby Current-Max
0.015A

Memory Density
2097152 bit

Access Time (Max)
5 ns

I/O Type
COMMON

Standby Voltage-Min
3.14V

Output Enable
YES

Length
20mm

Height Seated (Max)
1.6mm

Width
14mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V632S5PF.

Datasheets:

integrateddevicetechnology-idt71v632s5pf-datasheets-6190.pdf

IDT71V632S5PF Overview

As far as memory types are concerned, RAM, SRAM is considered to be its memory type. In the case of LQFP, it is embedded within the case. On the chip, there are 100 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 3.3V. In the memory, there is a clock frequency rotation that ranges 100MHz. I have noticed that the memory device has 100 pins, which indicates that it has 100 locations in the memory. The memory chip also offers PIPELINED ARCHITECTURE to level up system performance despite its merits. The memory chip has 1 ports for granting read/write access to one memory address. There is only a single power supply required for this memory chip. There are I/O ports on this memory ics that have COMMON-bit memory mapping. Temperatures below 0°C should not be used with this memory ics. It is recommended that operation of the part be restricted to temperatures not exceeding 70°C, otherwise damage to the part may occur as a result of overheating. As far as the supply current is concerned, it can be operated with a maximum of 0.2mA of currentIn most cases, this memory ics is regarded as being a type of SRAMs.

IDT71V632S5PF Features

Package / Case: LQFP
Additional Feature:PIPELINED ARCHITECTURE
I/O Type: COMMON

IDT71V632S5PF Applications

There are a lot of Integrated Device Technology (IDT)
IDT71V632S5PF Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
