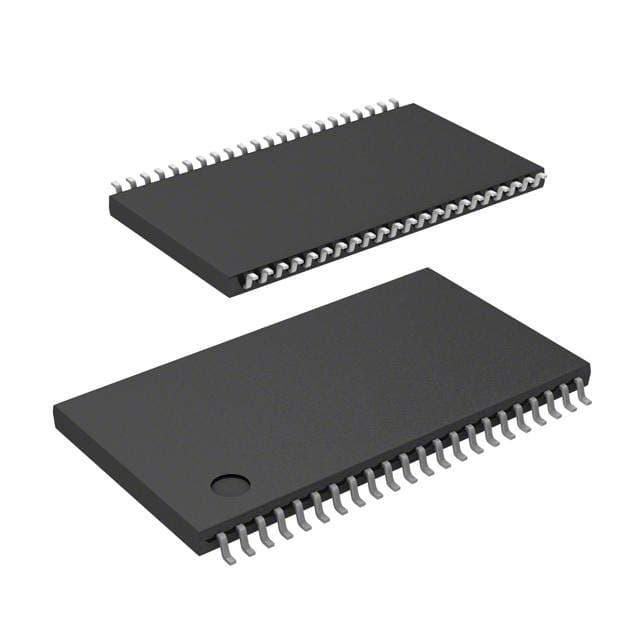

Renesas IDT71V416YS10PH

Manufacturer No:

IDT71V416YS10PH

Manufacturer:

Renesas

Package:

TSOP

Description:

3.3V V Memory IC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V416YS10PH information

Renesas IDT71V416YS10PH technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V416YS10PH.

Type
Parameter

Package / Case
TSOP

Surface Mount
YES

Published
2008

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Reach Compliance Code
not_compliant

JESD-30 Code
R-PDSO-G44

Qualification Status
Not Qualified

Power Supplies
3.3V

Temperature Grade
COMMERCIAL

Interface
Parallel

Memory Type
RAM, SRAM - Asynchronous

Supply Current-Max
0.2mA

Organization
256KX16

Memory Width
16

Standby Current-Max
0.02A

Memory Density
4194304 bit

Access Time (Max)
10 ns

I/O Type
COMMON

Standby Voltage-Min
3V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V416YS10PH.

Datasheets:

integrateddevicetechnology-idt71v416ys10ph-datasheets-5319.pdf

IDT71V416YS10PH Overview

A RAM, SRAM - Asynchronous-type memory can be classified as the memory type of this device. Embedded in the TSOP case, memory ics is a single file. A total of 44 terminations have been planted on the chip. In order to power this memory device, 3.3V will be necessary. As for power supplies, this memory chip requires just 3.3V . As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. There must not be a minimum operating temperature of less than 0°C for this device. A temperature of no more than 70°C centigrade is recommended for the component to be operated, otherwise, damage might be inflicted on the component. In order to operate your device, you will need to provide a maximum supply current of 0.2mA. Usually, this memory ics falls under the SRAMs component category.

IDT71V416YS10PH Features

Package / Case: TSOP
I/O Type: COMMON

IDT71V416YS10PH Applications

There are a lot of Integrated Device Technology (IDT)
IDT71V416YS10PH Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
