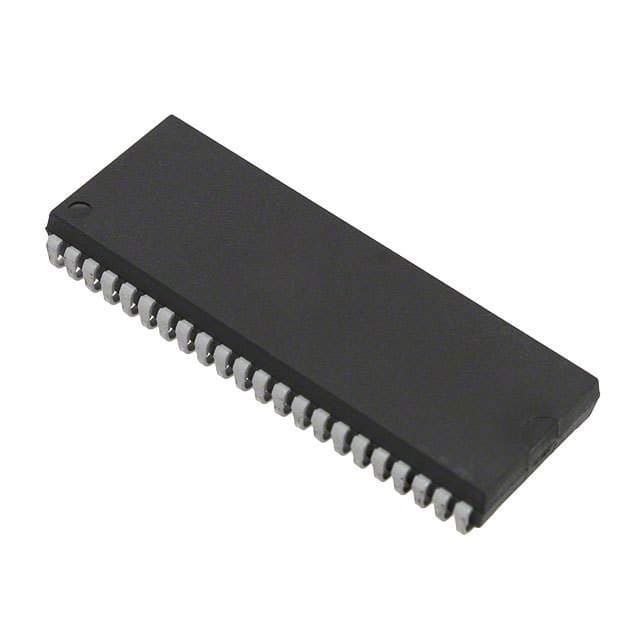

Renesas IDT71V416YL12Y

Manufacturer No:

IDT71V416YL12Y

Manufacturer:

Renesas

Package:

Description:

3.3V V 44 Pin Memory IC 28.575mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V416YL12Y information

Renesas IDT71V416YL12Y technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V416YL12Y.

Type
Parameter

Surface Mount
YES

Number of Pins
44

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
44

Qualification Status
Not Qualified

Power Supplies
3.3V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
3V

Interface
Parallel

Memory Type
RAM, SRAM - Asynchronous

Supply Current-Max
0.17mA

Organization
256KX16

Output Characteristics
3-STATE

Memory Width
16

Standby Current-Max
0.01A

Memory Density
4194304 bit

Access Time (Max)
12 ns

I/O Type
COMMON

Standby Voltage-Min
3V

Length
28.575mm

Height Seated (Max)
3.683mm

Width
10.16mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V416YL12Y.

Datasheets:

integrateddevicetechnology-idt71v416yl12y-datasheets-8047.pdf

IDT71V416YL12Y Overview

A RAM, SRAM - Asynchronous-type memory can be classified as the memory type of this device. A total of 44 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 3.3V will be necessary. A 44-pin package containing this memory device is used to house this device. The memory device in question has 44 pins, thus indicating that it has 44 memory locations that can be accessed. As for power supplies, this memory chip requires just 3.3V . As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. There must not be a minimum operating temperature of less than 0°C for this device. A temperature of no more than 70°C centigrade is recommended for the component to be operated, otherwise, damage might be inflicted on the component. In order to operate your device, you will need to provide a maximum supply current of 0.17mA. Usually, this memory ics falls under the SRAMs component category.

IDT71V416YL12Y Features

44 Pins
I/O Type: COMMON

IDT71V416YL12Y Applications

There are a lot of Integrated Device Technology (IDT)
IDT71V416YL12Y Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
