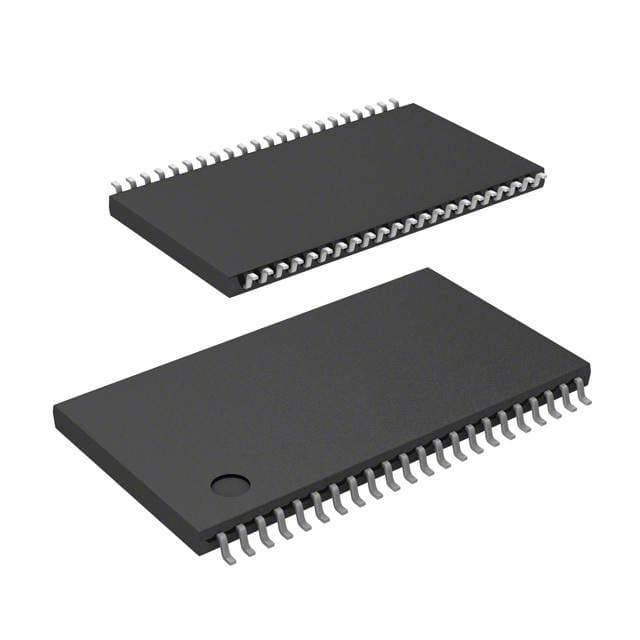

Renesas IDT71V016HSA15PH
Renesas IDT71V016HSA15PH

Renesas IDT71V016HSA15PH

Manufacturer No:

IDT71V016HSA15PH

Manufacturer:

Renesas

Package:

TSOP

Description:

44 Pin Memory IC 18.41mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V016HSA15PH information

Renesas IDT71V016HSA15PH technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V016HSA15PH.

  • Type
  • Parameter
  • Package / Case
  • TSOP
  • Surface Mount
  • YES
  • Published
  • 2007
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 44
  • ECCN Code
  • 3A991.B.2.B
  • Terminal Finish
  • MATTE TIN
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Additional Feature
  • ALSO OPERATES WITH 3V TO 3.6 V SUPPLY
  • HTS Code
  • 8542.32.00.41
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.8mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 44
  • JESD-30 Code
  • R-PDSO-G44
  • Qualification Status
  • Not Qualified
  • Temperature Grade
  • COMMERCIAL
  • Supply Voltage-Min (Vsup)
  • 3.15V
  • Interface
  • Parallel
  • Memory Type
  • RAM, SRAM - Asynchronous
  • Organization
  • 64KX16
  • Memory Width
  • 16
  • Memory Density
  • 1048576 bit
  • Access Time (Max)
  • 15 ns
  • Length
  • 18.41mm
  • Height Seated (Max)
  • 1.2mm
  • Width
  • 10.16mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V016HSA15PH.

Datasheets:

IDT71V016HSA15PH Overview


There is a RAM, SRAM - Asynchronous memory type associated with this device. There is a TSOP case embedded in it. The chip is terminated with 44 terminations. In total, this part supports 1 functions. Memory devices such as this one are designed to be powered by 3.3V and should be used as such. A memory device with 44 pins means that it contains 44 memory locations, indicating that it has 44 pins. Despite all the merits of this chip, it also has ALSO OPERATES WITH 3V TO 3.6 V SUPPLY to boost system performance. This device must not operate below 0°C . Ideally, this memory ics should be operated at a temperature of no more than 70°C°C.

IDT71V016HSA15PH Features


Package / Case: TSOP
Additional Feature:ALSO OPERATES WITH 3V TO 3.6 V SUPPLY


IDT71V016HSA15PH Applications


There are a lot of Integrated Device Technology (IDT)
IDT71V016HSA15PH Memory applications.


  • mainframes
  • multimedia computers
  • networking
  • personal computers
  • servers
  • supercomputers
  • telecommunications
  • workstations,
  • DVD disk buffer
  • data buffer
