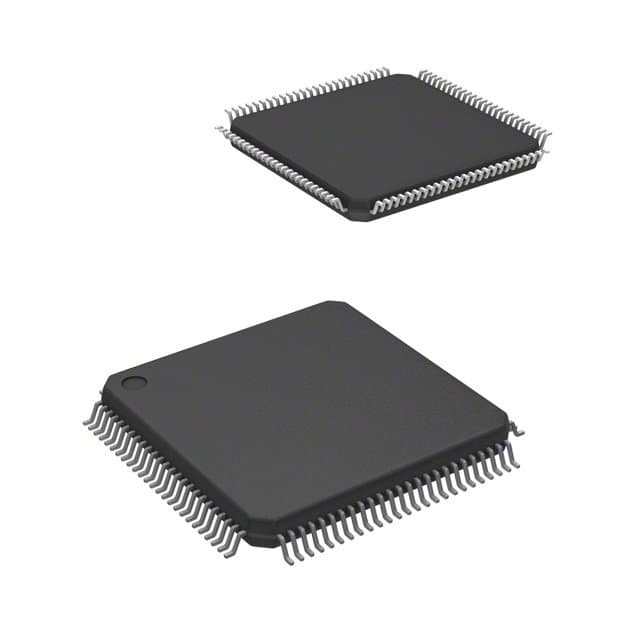

Renesas IDT71T75702S85PF

Manufacturer No:

IDT71T75702S85PF

Manufacturer:

Renesas

Package:

LQFP

Description:

2.5V V 100 Pin Memory IC 20mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71T75702S85PF information

Renesas IDT71T75702S85PF technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71T75702S85PF.

Type
Parameter

Package / Case
LQFP

Surface Mount
YES

Published
2005

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
FLOW-THROUGH ARCHITECTURE

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
100

JESD-30 Code
R-PQFP-G100

Supply Voltage-Max (Vsup)
2.625V

Power Supplies
2.5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
2.375V

Interface
Parallel

Memory Type
RAM, SRAM

Operating Mode
SYNCHRONOUS

Clock Frequency
90MHz

Supply Current-Max
0.225mA

Organization
512KX36

Output Characteristics
3-STATE

Memory Width
36

Standby Current-Max
0.04A

Memory Density
18874368 bit

Access Time (Max)
8.5 ns

I/O Type
COMMON

Standby Voltage-Min
2.38V

Length
20mm

Height Seated (Max)
1.6mm

Width
14mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71T75702S85PF.

Datasheets:

integrateddevicetechnology-idt71t75702s85pf-datasheets-5297.pdf

IDT71T75702S85PF Overview

RAM, SRAM is its memory type. As you can see, it is embedded in LQFP case. As you can see from the diagram, the chip is planted with 100 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 2.5V power supply. With a clock frequency of 90MHz, the memory rotates on its own. It has 100 pins indicating it has 100 memory locations. While this memory chip features many merits, it also offers FLOW-THROUGH ARCHITECTURE for improving system performance. This memory chip requires a mere 2.5V of power. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device. A minimum operating temperature of 0°C must be met by this device. As a general rule, memory ics is recommended that the product be operated at temperatures no higher than 70°Cc, otherwise, damage could be done to it. This memory ics is capable of operating with an input current of 0.225mA at max. Generally, this component is considered a type of SRAMs.

IDT71T75702S85PF Features

Package / Case: LQFP
Additional Feature:FLOW-THROUGH ARCHITECTURE
I/O Type: COMMON

IDT71T75702S85PF Applications

There are a lot of Integrated Device Technology (IDT)
IDT71T75702S85PF Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
