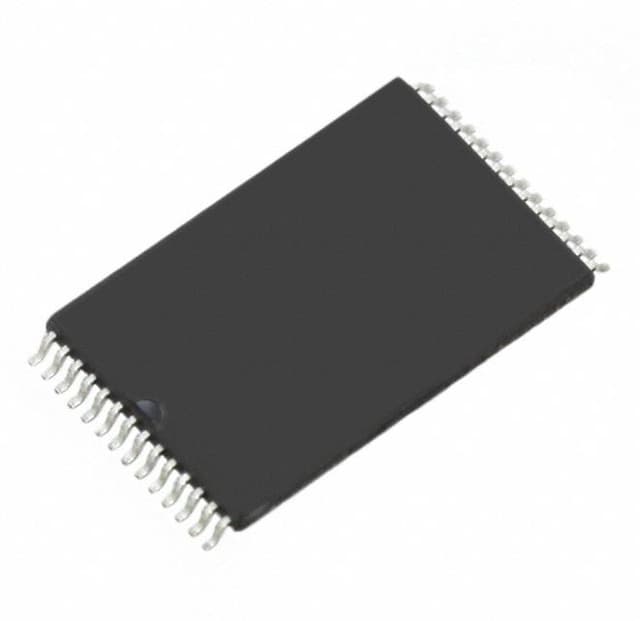

Renesas IDT71256SA15PZ

Manufacturer No:

IDT71256SA15PZ

Manufacturer:

Renesas

Package:

TSSOP

Description:

5V V Surface Mount 28 Pin Memory IC 256 kb kb 150mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71256SA15PZ information

Renesas IDT71256SA15PZ technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71256SA15PZ.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
28

Published
1997

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.55mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
28

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Ports
1

Nominal Supply Current
150mA

Memory Type
RAM, SRAM - Asynchronous

Access Time
15 ns

Organization
32KX8

Output Characteristics
3-STATE

Memory Width
8

Address Bus Width
15b

Density
256 kb

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Output Enable
YES

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71256SA15PZ.

Datasheets:

integrateddevicetechnology-idt71256sa15pz-datasheets-8200.pdf

IDT71256SA15PZ Overview

Its memory type can be classified as RAM, SRAM - Asynchronous. It is available in TSSOP case. 28 terminations are planted on the chip. This part supports as many as 1 functions for the comprehensive working procedure. This ic memory chip is designed to be supplied with 5V. This memory device is enclosed in a 28-pin package. This memory device has 28 pins, indicating it has 28 memory locations. The operating supply voltage of this memory chip is noted to be 5V. This chip is configured to use Surface Mount mounting, a straight forward, high-efficiency mounting fashion. This memory chip is rated 150mA for its nominal supply current. There are 1 ports used in this chip to give read and/or write access to one memory address. Talking about power supplies, this memory chip requires merely 5V. This device has COMMON-bit memory mapped I/O port addresses. The minimum operating temperature of this device must not be less than 0°C. It is recommended for operation at temperatures no higher than. Usually, this memory ics is regarded as a type of SRAMs. The minimum supply voltage for this part should not be less than 4.5V. Its operating voltage shall not exceed 5.5V.

IDT71256SA15PZ Features

Package / Case: TSSOP
28 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

IDT71256SA15PZ Applications

There are a lot of Integrated Device Technology (IDT)
IDT71256SA15PZ Memory applications.

Cache memory
cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
