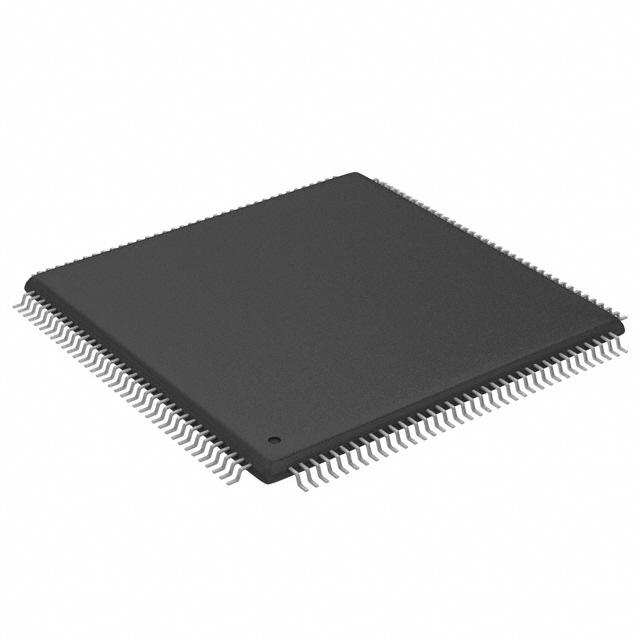

Renesas IDT70V7319S166DDI

Manufacturer No:

IDT70V7319S166DDI

Manufacturer:

Renesas

Package:

TQFP

Description:

2.5/3.33.3V V 144 Pin Memory IC 20mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT70V7319S166DDI information

Renesas IDT70V7319S166DDI technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT70V7319S166DDI.

Type
Parameter

Package / Case
TQFP

Surface Mount
YES

Published
2008

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
144

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
FLOW-THROUGH OR PIPELINED ARCHITECTURE

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Frequency
166MHz

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
144

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.45V

Power Supplies
2.5/3.33.3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3.15V

Interface
Parallel

Number of Ports
2

Memory Type
RAM, SRAM

Operating Mode
SYNCHRONOUS

Supply Current-Max
0.83mA

Organization
256KX18

Output Characteristics
3-STATE

Memory Width
18

Standby Current-Max
0.04A

Memory Density
4718592 bit

Access Time (Max)
12 ns

I/O Type
COMMON

Standby Voltage-Min
3.15V

Length
20mm

Height Seated (Max)
1.6mm

Width
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT70V7319S166DDI.

Datasheets:

integrateddevicetechnology-idt70v7319s166ddi-datasheets-4692.pdf

IDT70V7319S166DDI Overview

In this case, the memory type of the device can be classified as RAM, SRAM. An embedded TQFP case surrounds memory ics. It is planted on the chip with 144 terminations. It supports up to 1 functions for comprehensive operation. There is a requirement for 3.3V to be supplied to this ic memory chip in order to operate. The memory device has a total of 144 pins, thus indicating that it has a total of 144 memory locations. This chip is not only loaded with advantages, but it also comes with FLOW-THROUGH OR PIPELINED ARCHITECTURE, which boosts the performance of your system. Several ports on this chip are used to access one memory address for reading and writing. In terms of power requirements, this memory chip uses only 2.5/3.33.3V . I/O port addresses in this device are mapped to COMMON bits from the device's memory. In order for this device to function properly, its operating temperature must not be less than -40°C. The temperature should not exceed 85°C degrees Celsius. In terms of power consumption, it can operate at a maximum supply of 0.83mA . SRAMs components are usually considered types of this component. Using this memory chip, you will be able to process data at a speed of 166MHz times per second.

IDT70V7319S166DDI Features

Package / Case: TQFP
Additional Feature:FLOW-THROUGH OR PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 166MHz
166MHz terminals

IDT70V7319S166DDI Applications

There are a lot of Integrated Device Technology (IDT)
IDT70V7319S166DDI Memory applications.

networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
