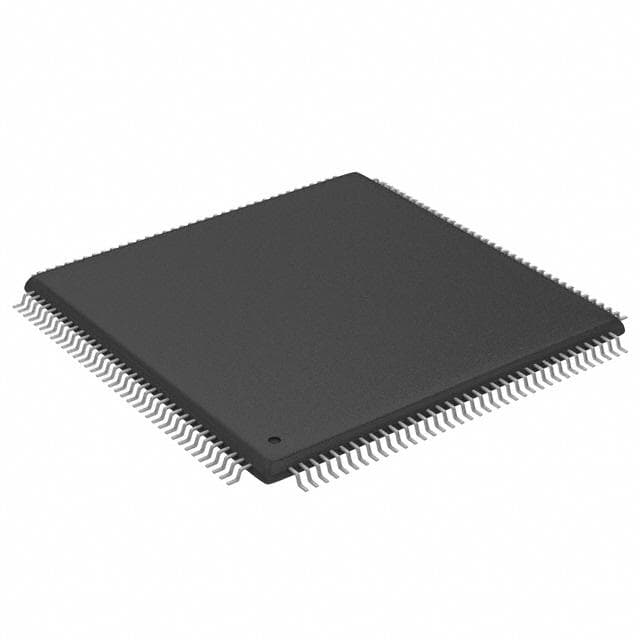

Renesas IDT70V7319S166DD

Manufacturer No:

IDT70V7319S166DD

Manufacturer:

Renesas

Package:

TQFP

Description:

2.5/3.33.3V V 144 Pin Memory IC 20mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT70V7319S166DD information

Renesas IDT70V7319S166DD technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT70V7319S166DD.

Type
Parameter

Package / Case
TQFP

Surface Mount
YES

Published
2008

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
144

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
FLOW-THROUGH OR PIPELINED ARCHITECTURE

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Frequency
166MHz

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
144

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.45V

Power Supplies
2.5/3.33.3V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
3.15V

Interface
Parallel

Number of Ports
2

Memory Type
RAM, SRAM

Operating Mode
SYNCHRONOUS

Supply Current-Max
0.79mA

Organization
256KX18

Output Characteristics
3-STATE

Memory Width
18

Standby Current-Max
0.03A

Memory Density
4718592 bit

Access Time (Max)
12 ns

I/O Type
COMMON

Standby Voltage-Min
3.15V

Length
20mm

Height Seated (Max)
1.6mm

Width
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT70V7319S166DD.

Datasheets:

integrateddevicetechnology-idt70v7319s166dd-datasheets-0100.pdf

IDT70V7319S166DD Overview

A RAM, SRAM-type memory can be classified as the memory type of this device. Embedded in the TQFP case, memory ics is a single file. A total of 144 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 3.3V will be necessary. The memory device in question has 144 pins, thus indicating that it has 144 memory locations that can be accessed. This chip features all the merits of a conventional chip, but it also features FLOW-THROUGH OR PIPELINED ARCHITECTURE to improve system performance. 2 ports allow read/write access to one memory address in this chip. As for power supplies, this memory chip requires just 2.5/3.33.3V . As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. There must not be a minimum operating temperature of less than 0°C for this device. A temperature of no more than 70°C centigrade is recommended for the component to be operated, otherwise, damage might be inflicted on the component. In order to operate your device, you will need to provide a maximum supply current of 0.79mA. Usually, this memory ics falls under the SRAMs component category. A frequency of 166MHz is used to process the data on this memory chip.

IDT70V7319S166DD Features

Package / Case: TQFP
Additional Feature:FLOW-THROUGH OR PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 166MHz
166MHz terminals

IDT70V7319S166DD Applications

There are a lot of Integrated Device Technology (IDT)
IDT70V7319S166DD Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
