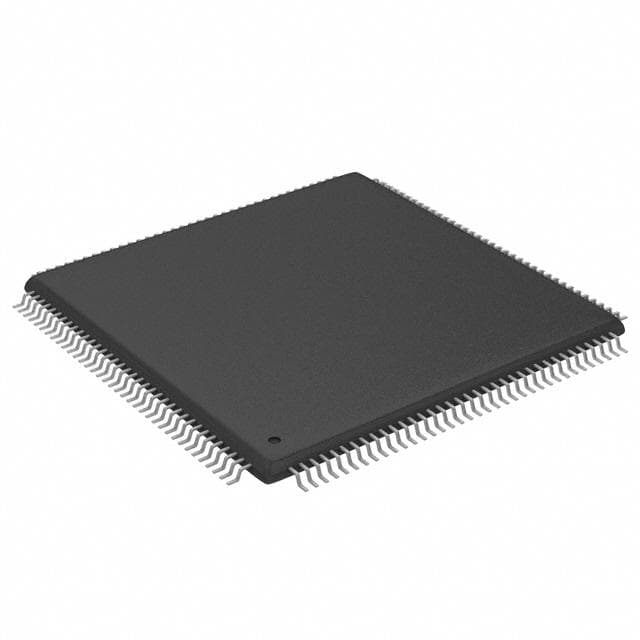

Renesas IDT70T3319S133DDI

Manufacturer No:

IDT70T3319S133DDI

Manufacturer:

Renesas

Package:

TQFP

Description:

2.52.5/3.3V V 144 Pin Memory IC 20mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT70T3319S133DDI information

Renesas IDT70T3319S133DDI technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT70T3319S133DDI.

Type
Parameter

Package / Case
TQFP

Surface Mount
YES

Published
2008

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
144

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
FLOW-THROUGH OR PIPELINED ARCHITECTURE

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Frequency
133MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
144

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
2.6V

Power Supplies
2.52.5/3.3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.4V

Interface
Parallel

Number of Ports
2

Memory Type
RAM, SRAM

Operating Mode
SYNCHRONOUS

Supply Current-Max
0.45mA

Organization
256KX18

Output Characteristics
3-STATE

Memory Width
18

Standby Current-Max
0.02A

Memory Density
4718592 bit

Access Time (Max)
15 ns

I/O Type
COMMON

Standby Voltage-Min
2.4V

Length
20mm

Height Seated (Max)
1.6mm

Width
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT70T3319S133DDI.

Datasheets:

integrateddevicetechnology-idt70t3319s133ddi-datasheets-7617.pdf

IDT70T3319S133DDI Overview

As far as memory types are concerned, RAM, SRAM is considered to be its memory type. In the case of TQFP, it is embedded within the case. On the chip, there are 144 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 2.5V. I have noticed that the memory device has 144 pins, which indicates that it has 144 locations in the memory. The memory chip also offers FLOW-THROUGH OR PIPELINED ARCHITECTURE to level up system performance despite its merits. The memory chip has 2 ports for granting read/write access to one memory address. There is only a single power supply required for this memory chip. There are I/O ports on this memory ics that have COMMON-bit memory mapping. Temperatures below -40°C should not be used with this memory ics. It is recommended that operation of the part be restricted to temperatures not exceeding 85°C, otherwise damage to the part may occur as a result of overheating. As far as the supply current is concerned, it can be operated with a maximum of 0.45mA of currentIn most cases, this memory ics is regarded as being a type of SRAMs. A ic memory chip like this one processes data at a frequency of 133MHz bits per second.

IDT70T3319S133DDI Features

Package / Case: TQFP
Additional Feature:FLOW-THROUGH OR PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 133MHz
133MHz terminals

IDT70T3319S133DDI Applications

There are a lot of Integrated Device Technology (IDT)
IDT70T3319S133DDI Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
