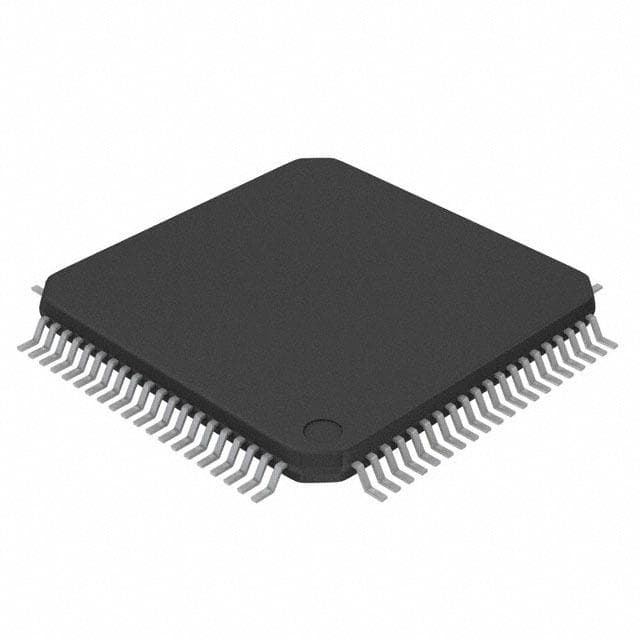

Renesas IDT70825S35PF

Manufacturer No:

IDT70825S35PF

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 80 Pin Memory IC 128 kb kb 14mm mm 340mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT70825S35PF information

Renesas IDT70825S35PF technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT70825S35PF.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
80

Published
2009

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
80

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
AUTOMATIC POWER-DOWN

Subcategory
Other Memory ICs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
80

Qualification Status
Not Qualified

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Ports
2

Nominal Supply Current
340mA

Memory Type
RAM

Access Time
35 ns

Organization
8KX16

Memory Width
16

Address Bus Width
26b

Density
128 kb

Standby Current-Max
0.015A

Sync/Async
Asynchronous

Word Size
16b

Length
14mm

Height Seated (Max)
1.6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT70825S35PF.

Datasheets:

integrateddevicetechnology-idt70825s35pf-datasheets-3417.pdf

IDT70825S35PF Overview

As far as memory types are concerned, RAM is considered to be its memory type. In the case of TQFP, it is embedded within the case. On the chip, there are 80 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 5V. The memory device has an 80-pin package, which encloses it in a small package. I have noticed that the memory device has 80 pins, which indicates that it has 80 locations in the memory. According to the datasheet, this memory chip operates at an operating voltage of 5V. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 340mA. The memory chip also offers AUTOMATIC POWER-DOWN to level up system performance despite its merits. The memory chip has 2 ports for granting read/write access to one memory address. There is only a single power supply required for this memory chip. Temperatures below 0°C should not be used with this memory ics. It is recommended that operation of the part be restricted to temperatures not exceeding 70°C, otherwise damage to the part may occur as a result of overheating. In most cases, this memory ics is regarded as being a type of Other Memory ICs. It is recommended that this part be supplied with at least 4.5V volts. The operating voltage shall not exceed 5.5V.

IDT70825S35PF Features

Package / Case: TQFP
80 Pins
Operating Supply Voltage:5V
Additional Feature:AUTOMATIC POWER-DOWN

IDT70825S35PF Applications

There are a lot of Integrated Device Technology (IDT)
IDT70825S35PF Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
