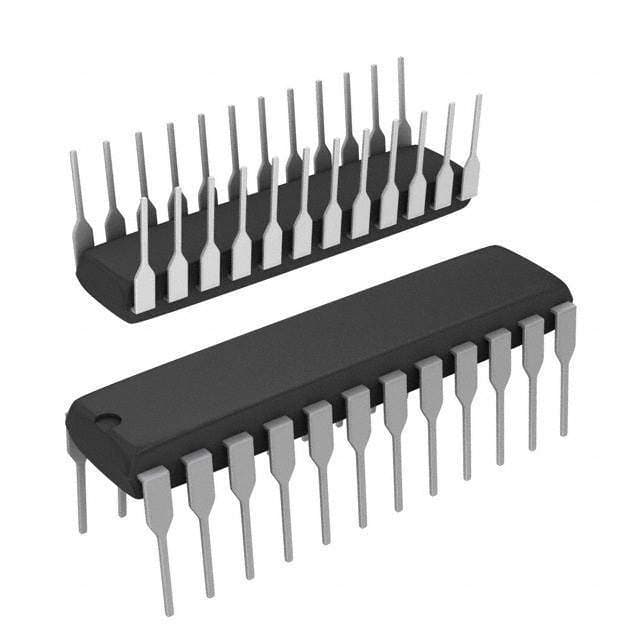

Renesas IDT6116SA15TP

Manufacturer No:

IDT6116SA15TP

Manufacturer:

Renesas

Package:

DIP

Description:

5V V 24 Pin Memory IC 31.75mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT6116SA15TP information

Renesas IDT6116SA15TP technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT6116SA15TP.

Type
Parameter

Package / Case
DIP

Surface Mount
NO

Published
2008

JESD-609 Code
e0

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
THROUGH-HOLE

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.5V

Interface
Parallel

Number of Ports
1

Memory Type
RAM, SRAM - Asynchronous

Supply Current-Max
0.15mA

Organization
2KX8

Output Characteristics
3-STATE

Memory Width
8

Standby Current-Max
0.002A

Memory Density
16384 bit

Access Time (Max)
15 ns

I/O Type
COMMON

Standby Voltage-Min
4.5V

Output Enable
YES

Length
31.75mm

Height Seated (Max)
4.191mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT6116SA15TP.

Datasheets:

integrateddevicetechnology-idt6116sa15tp-datasheets-8166.pdf

IDT6116SA15TP Overview

Its memory type can be classified as RAM, SRAM - Asynchronous. It is available in DIP case. 24 terminations are planted on the chip. This part supports as many as 1 functions for the comprehensive working procedure. This ic memory chip is designed to be supplied with 5V. This memory device has 24 pins, indicating it has 24 memory locations. There are 1 ports used in this chip to give read and/or write access to one memory address. Talking about power supplies, this memory chip requires merely 5V. This device has COMMON-bit memory mapped I/O port addresses. The minimum operating temperature of this device must not be less than 0°C. It is recommended for operation at temperatures no higher than. It is able to operate from a max supply current of 0.15mA. Usually, this memory ics is regarded as a type of SRAMs.

IDT6116SA15TP Features

Package / Case: DIP
I/O Type: COMMON

IDT6116SA15TP Applications

There are a lot of Integrated Device Technology (IDT)
IDT6116SA15TP Memory applications.

Cache memory
cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
