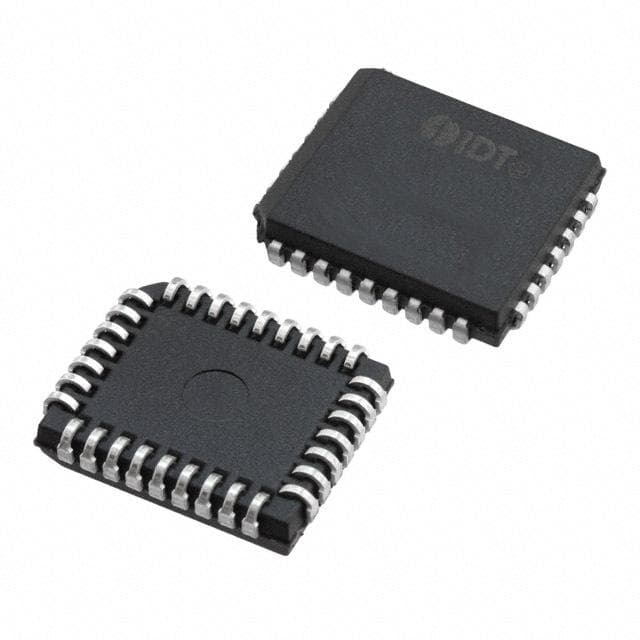

Renesas IDT5V991A-7JGI8

Manufacturer No:

IDT5V991A-7JGI8

Manufacturer:

Renesas

Package:

LCC

Description:

3.3V 85MHz Clock Generators 32 Pins LCC 32 Terminals Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT5V991A-7JGI8 information

Renesas IDT5V991A-7JGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT5V991A-7JGI8.

Type
Parameter

Mount
Surface Mount

Package / Case
LCC

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Number of Terminations
32

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

JESD-30 Code
R-PQCC-J32

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3V

Number of Circuits
1

Frequency (Max)
85MHz

Logic IC Type
PLL BASED CLOCK DRIVER

Number of True Outputs
8

Height Seated (Max)
3.55mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT5V991A-7JGI8.

Datasheets:

integrateddevicetechnology-idt5v991a7jgi8-datasheets-1902.pdf

IDT5V991A-7JGI8 Overview

It is packaged using the Tape & Reel (TR) method since it is a clock IC. Embedded in the LCC package is this Clock PLL. Frequency generator is capable of operating at a maximum temperature of 260 when reflowing. It contains a total of 32 terminations within RF synthesizer. This clock generator ic should receive a voltage of 3.3V. It is designed that the Clock PLL's input should be LVTTL. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 85MHz. Clock PLL is capable of receiving a maximum of 3.6V as a supply voltage. There should be a voltage supply above 3V for this frequency generator in order to ensure its safety. In this IC, a 32-bit frequency generator is designed specifically for use in microprocessors. There are -40°C operations available on this frequency generator and it operates at low temperatures. It is possible for the clock generator ic to work at 85°C with a reduced performance. A analog clock generator with 8 true output enable pins is configured for this application. Logic circuits containing this analog clock generator are commonly used in PLL BASED CLOCK DRIVER logic.

IDT5V991A-7JGI8 Features

Available in the LCC
Supply voltage of 3.3V
8 true outputs

IDT5V991A-7JGI8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT5V991A-7JGI8 Clock Generators applications.

1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
