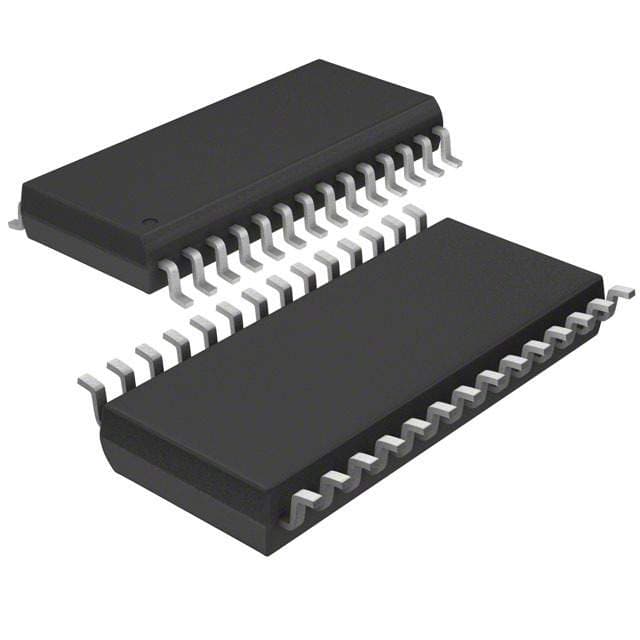

Renesas IDT5T905PGI

Manufacturer No:

IDT5T905PGI

Manufacturer:

Renesas

Package:

TSSOP

Description:

1 Circuit 250MHz 2.5V Clock Buffer DUAL 28 Pins TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT5T905PGI information

Renesas IDT5T905PGI technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT5T905PGI.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Published
2012

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
2.6V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Frequency (Max)
250MHz

Family
5T

Input
LVTTL

Logic IC Type
LOW SKEW CLOCK DRIVER

Prop. Delay@Nom-Sup
2.5 ns

Propagation Delay (tpd)
2.5 ns

Same Edge Skew-Max (tskwd)
0.025 ns

Number of True Outputs
5

Length
9.7mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT5T905PGI.

Datasheets:

integrateddevicetechnology-idt5t905pgi-datasheets-6894.pdf

IDT5T905PGI Overview

There is a case available for the cut smart buffer in TSSOP. For normal operation, 250MHz is the maximum value. It has 28 terminations in it, which means that it is terminated. Supply voltages of 2.5V are capable of achieving high efficiency. It has been positioned in the way of Surface Mount. There are 28 pins on the clock buffer. I have enclosed this circuit clock in Clock Drivers for your convenience. The clock switch operates at a minimum working temperature of -40°C in order to maintain reliability. It is possible to achieve stable operation by setting the maximum operating temperature to 85°C. A member of the 5T family, this clock buffer is a digital camera. Vsup is set to 2.6V as the maximum supply voltage. The circuit uses a logic IC with a value of LOW SKEW CLOCK DRIVER as the input. As a general rule, the supply voltage (Vsup) should be maintained above 2.4V. A total of 5 outputs are available.

IDT5T905PGI Features

28 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

IDT5T905PGI Applications

There are a lot of Integrated Device Technology (IDT)
IDT5T905PGI Clock Buffers & Drivers applications.

Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
