Renesas IDT5991A-2JG8

Manufacturer No:

IDT5991A-2JG8

Manufacturer:

Renesas

Package:

LCC

Description:

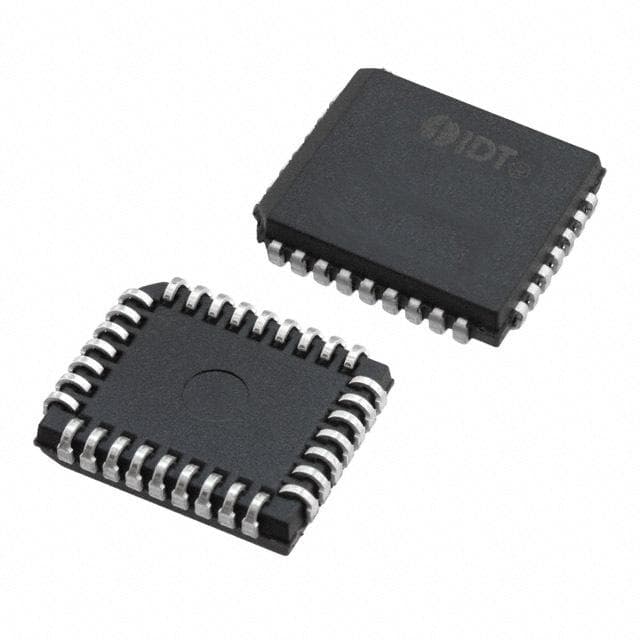

5V 100MHz Clock Generators 32 Pins LCC 32 Terminals Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT5991A-2JG8 information

Renesas IDT5991A-2JG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT5991A-2JG8.

Type
Parameter

Mount
Surface Mount

Package / Case
LCC

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Number of Terminations
32

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

JESD-30 Code
R-PQCC-J32

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.25V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
4.75V

Number of Circuits
1

Frequency (Max)
100MHz

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.25 ns

Number of True Outputs
8

Height Seated (Max)
3.55mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT5991A-2JG8.

Datasheets:

integrateddevicetechnology-idt5991a2jg8-datasheets-4663.pdf

IDT5991A-2JG8 Overview

Tape & Reel (TR)-method packaging is used for clock ICs. The LCC package contains this clock generator. This clock generator ic can sustain a maximum temperature of 260 during reflowing. It contains 32 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 5V. The input of this clock generator is designed to be TTL. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 100MHz Max with this clock-based frequency generator. This clock generator would require a maximum supply voltage of 5.25V. For safety reasons, this frequency synthesizer should have a voltage supply above 4.75V. The clock-generating IC is a 32-bit device designed specifically for microprocessors. Despite its low-temperature operation, this clock generator ic is capable of 0°C operations. Despite its attenuated performance, this frequency synthesizer can last at 70°C. At 0.25 ns Max, this clock generator offers low timing skew. 8 high true output enable pins are available on this clock generator. Logic circuits based on PLL BASED CLOCK DRIVER logic use this electronic frequency generator.

IDT5991A-2JG8 Features

Available in the LCC
Supply voltage of 5V
8 true outputs

IDT5991A-2JG8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT5991A-2JG8 Clock Generators applications.

Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
