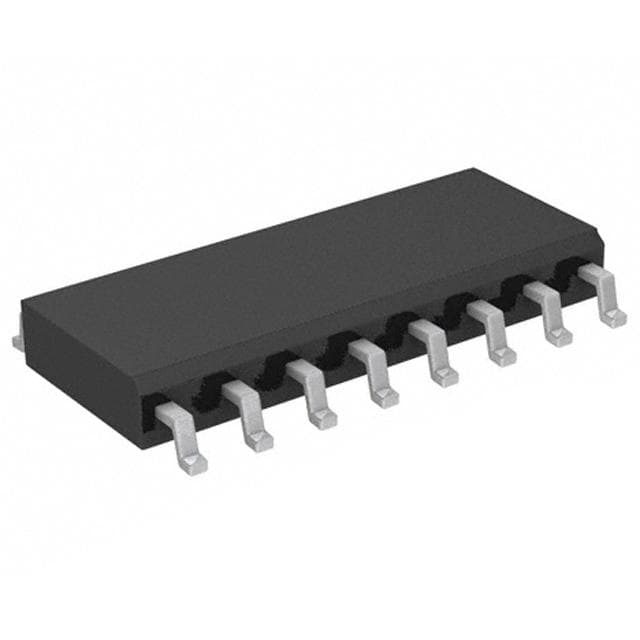

Renesas IDT2308B-2DCI8

Manufacturer No:

IDT2308B-2DCI8

Manufacturer:

Renesas

Package:

SOIC

Description:

3.3V 133.3MHz Clock Generators 16 Pins SOIC 16 Terminals Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT2308B-2DCI8 information

Renesas IDT2308B-2DCI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT2308B-2DCI8.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Packaging
Tape and Reel

Published
2009

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
3.3V

Reach Compliance Code
not_compliant

Pin Count
16

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Nominal Supply Current
45mA

Frequency (Max)
133.3MHz

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.4 ns

Number of True Outputs
8

Width
3.937mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT2308B-2DCI8.

Datasheets:

integrateddevicetechnology-idt2308b2dci8-datasheets-6126.pdf

IDT2308B-2DCI8 Overview

Clock ICs are packaged using the Tape and Reel method. In the SOIC package, there is an embedded clock generator. There are a total of 16 terminations in this file. A voltage of 3.3V should be applied to this electronic frequency generator. In this case, LVTTL is designed to be the input of the clock generator. To access the electronic component's full performance, 1 circuits are implemented. The frequency generator has a maximum frequency of 133.3MHz. An IC that generates clocks specifically for microprocessors, this clock PLL is 16-bits in si16e. A 16 pin is available on the clock PLL. In addition to having an impressive low-temperature performance, this clock device can perform -40°C operations simultaneously. This RF synthesizer can last with attenuated performance at 85°C. Clock PLL is capable of handling a voltage of 3.3V. The timing skew of this frequency synthesizer is low at 0.4 nsmax. There are 8 pins configured for enabling high true outputs on this clock generator. 2308-family clock generators are similar. In order to supply this clock PLL, a voltage greater than 3.6V is not acceptable. This RF synthesizer can operate at a voltage as low as 3V. In PLL BASED CLOCK DRIVER logic circuits, this electronic frequency generator is used primarily as a clock component.

IDT2308B-2DCI8 Features

Available in the SOIC
Supply voltage of 3.3V
Operating supply voltage of 3.3V
8 true outputs

IDT2308B-2DCI8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT2308B-2DCI8 Clock Generators applications.

Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
