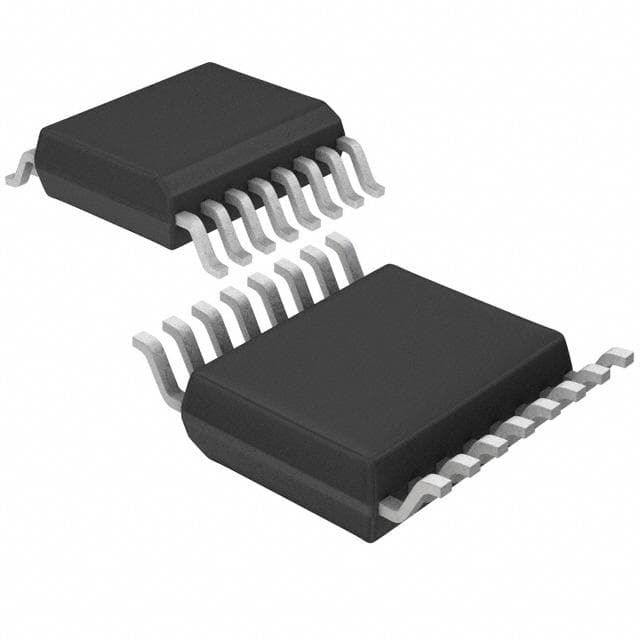

Renesas IDT2308-1HPG

Manufacturer No:

IDT2308-1HPG

Manufacturer:

Renesas

Package:

TSSOP

Description:

3.3V 133.3MHz Clock Generators 16 Pins TSSOP 16 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT2308-1HPG information

Renesas IDT2308-1HPG technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT2308-1HPG.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
3V

Frequency (Max)
133.3MHz

Family
2308

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.2 ns

Number of True Outputs
8

Length
5mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT2308-1HPG.

Datasheets:

integrateddevicetechnology-idt23081hpg-datasheets-6286.pdf

IDT2308-1HPG Overview

TSSOP contains this Clock PLL. When reflowed, this frequency generator can withstand a maximum temperature of NOT SPECIFIED. As a result, frequency synthesizers can be found to contain 16 terminations. For this clock generator ic, a voltage of 3.3V is required. This Clock PLL will be fed by LVTTL as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. Providing a maximum frequency of 133.3MHz, this clock-based RF synthesizer is suitable for a variety of applications. It would be possible to supply this clock PLL with 3.6V of power. For safety reasons, this frequency generator's supply voltage should remain above 3V. In particular, this clock PLL is designed to be used with microprocessors. Despite its low operating temperature, this clock generator has 0°C operations. There is even a possibility that this clock generator ic will last even when the temperature is 70°C. Clock Drivers-type frequency generators are usually classified as this type. At 0.2 ns Max, this analog clock generator exhibits low timing skew. There are 8 pins that are configured to enable high true output on this analog clock generator. The 2308 family of parts can be used to find electric parts that are similar to each other. PLL BASED CLOCK DRIVER logic circuits mainly utiliPLL BASED CLOCK DRIVERe this time clock generator.

IDT2308-1HPG Features

Available in the TSSOP
Supply voltage of 3.3V
8 true outputs

IDT2308-1HPG Applications

There are a lot of Integrated Device Technology (IDT)
IDT2308-1HPG Clock Generators applications.

Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
