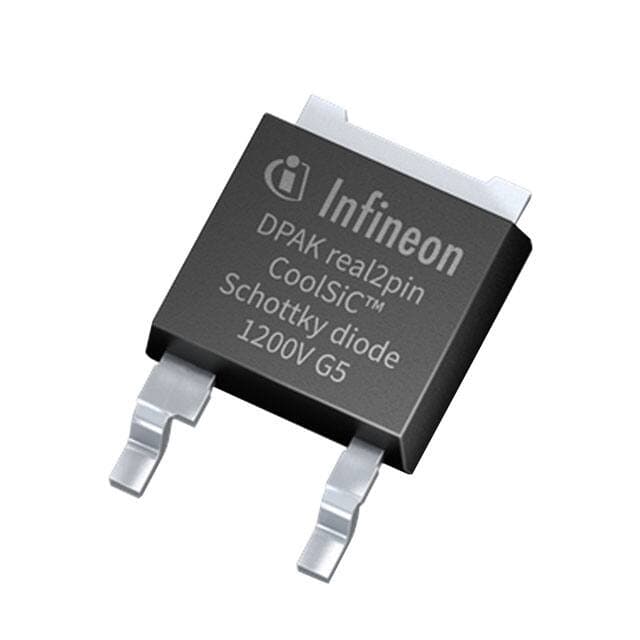

INFINEON IDM02G120C5XTMA1
Manufacturer No:
IDM02G120C5XTMA1
Manufacturer:
Package:
TO-252-3, DPak (2 Leads + Tab), SC-63
Description:
Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.65V @ 2A -55°C~175°C 18μA @ 1200V 2-Termination Tape & Reel (TR) TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
IDM02G120C5XTMA1 information
INFINEON IDM02G120C5XTMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON IDM02G120C5XTMA1.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount, Through Hole
- Mounting Type
- Surface Mount
- Package / Case
- TO-252-3, DPak (2 Leads + Tab), SC-63
- Number of Pins
- 2
- Number of Elements
- 1
- Power Dissipation (Max)
- 98W
- Packaging
- Tape & Reel (TR)
- Series
- CoolSiC™+
- Published
- 2015
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Max Operating Temperature
- 175°C
- Min Operating Temperature
- -55°C
- Applications
- EFFICIENCY
- Additional Feature
- HIGH RELIABILITY, PD-CASE
- Terminal Position
- SINGLE
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Element Configuration
- Common Cathode
- Speed
- No Recovery Time > 500mA (Io)
- Diode Type
- Silicon Carbide Schottky
- Current - Reverse Leakage @ Vr
- 18μA @ 1200V
- Voltage - Forward (Vf) (Max) @ If
- 1.65V @ 2A
- Forward Current
- 14A
- Operating Temperature - Junction
- -55°C~175°C
- Halogen Free
- Halogen Free
- Voltage - DC Reverse (Vr) (Max)
- 1200V
- Current - Average Rectified (Io)
- 2A DC
- Max Reverse Voltage (DC)
- 1.2kV
- Average Rectified Current
- 2A
- Number of Phases
- 1
- Reverse Recovery Time
- 0ns
- Peak Reverse Current
- 18μA
- Max Repetitive Reverse Voltage (Vrrm)
- 1.2kV
- Capacitance @ Vr, F
- 182pF @ 1V 1MHz
- Peak Non-Repetitive Surge Current
- 37A
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for INFINEON IDM02G120C5XTMA1.
Other Related Documents:
PCN Packaging:
ConflictMineralStatement:
IDM02G120C5XTMA1 Overview
For this device, the average rectified current is 2A volts.In this case, forward current can reach 14A.Based on the data chart, the peak reverse is 18μA.
IDM02G120C5XTMA1 Features
an average rectified current of 2A volts
the peak reverse is 18μA
IDM02G120C5XTMA1 Applications
There are a lot of Infineon Technologies
IDM02G120C5XTMA1 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
