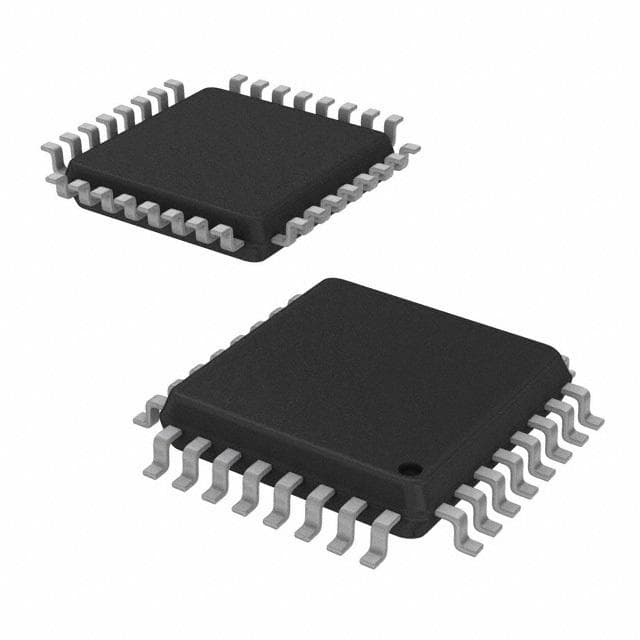

Renesas ICS853111AY-02LF

Manufacturer No:

ICS853111AY-02LF

Manufacturer:

Renesas

Package:

LQFP

Description:

1 Circuit 3.2GHz 3.3V Clock Buffer QUAD 32 Pins LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICS853111AY-02LF information

Renesas ICS853111AY-02LF technical specifications, attributes, parameters and parts with similar specifications to Renesas ICS853111AY-02LF.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ECL MODE: VCC = 0V WITH VEE = -2.375V TO -3.8V

Subcategory
Clock Drivers

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

JESD-30 Code
S-PQFP-G32

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.8V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.375V

Number of Circuits
1

Frequency (Max)
3.2GHz

Input
CMOS

Logic IC Type
LOW SKEW CLOCK DRIVER

Prop. Delay@Nom-Sup
0.89 ns

Propagation Delay (tpd)
0.79 ns

Same Edge Skew-Max (tskwd)
0.037 ns

Number of True Outputs
10

Length
7mm

Width
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ICS853111AY-02LF.

Datasheets:

integrateddevicetechnology-ics853111ay02lf-datasheets-3586.pdf

ICS853111AY-02LF Overview

There is a case option of LQFP available for this clock divider. Normal operation is limited to 3.2GHz. 32 terminations have been recorded. With a supply voltage of 3.3V, high efficiency is possible. Surface Mount is placed within the way of this object. A pin count of 32 can be found on it. A cut smart buffer of this type is contained in Clock Drivers. In order to maintain reliability, the maximum operating temperature is -40°C. The maximum operating temperature of 85°C enables stable operation. The maximum supply voltage (Vsup) has been set to 3.8V. Logic IC with LOW SKEW CLOCK DRIVER value is used in this circuit. As a rule, the supply voltage (Vsup) should be kept above 2.375V for normal operation. There is a -2.5/-3.3/2.5/3.3V volt supply attached to it. We are able to produce 10 true outputs. As a result of utilizing this gadget, ECL MODE: VCC = 0V WITH VEE = -2.375V TO -3.8V is also available.

ICS853111AY-02LF Features

32 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

ICS853111AY-02LF Applications

There are a lot of Integrated Device Technology (IDT)
ICS853111AY-02LF Clock Buffers & Drivers applications.

Clock signal duplication
Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
