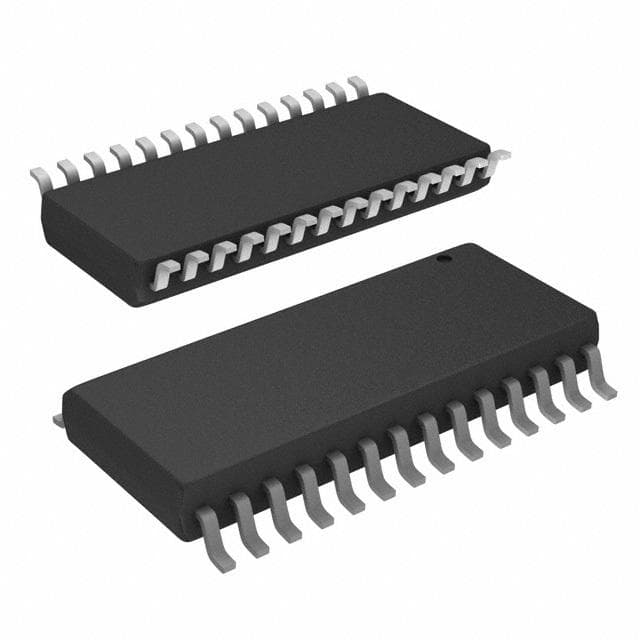

Renesas ICS527R-03

Manufacturer No:

ICS527R-03

Manufacturer:

Renesas

Package:

SSOP

Description:

3.3V 160MHz Clock Generators 28 Pins SSOP 28 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICS527R-03 information

Renesas ICS527R-03 technical specifications, attributes, parameters and parts with similar specifications to Renesas ICS527R-03.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Published
1999

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.45V

Power Supplies
3.3V

Temperature Grade
COMMERCIAL

Frequency (Max)
160MHz

Output Characteristics
3-STATE

Input
CMOS

Logic IC Type
PLL BASED CLOCK DRIVER

Number of True Outputs
1

Number of Inverted Outputs
1

Length
9.9mm

Width
3.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ICS527R-03.

Datasheets:

integrateddevicetechnology-ics527r03-datasheets-6985.pdf

ICS527R-03 Overview

Embedded in the SSOP package is this Clock PLL. Frequency generator is capable of operating at a maximum temperature of 225 when reflowing. It contains a total of 28 terminations within RF synthesizer. This clock generator ic should receive a voltage of 3.3V. It is designed that the Clock PLL's input should be CMOS. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 160MHz. Clock PLL is capable of receiving a maximum of 3.45V as a supply voltage. In this IC, a 28-bit frequency generator is designed specifically for use in microprocessors. There are 0°C operations available on this frequency generator and it operates at low temperatures. It is possible for the clock generator ic to work at 70°C with a reduced performance. As such, it is often referred to as a kind of Clock Drivers clock PLL. A analog clock generator with 1 true output enable pins is configured for this application. Logic circuits containing this analog clock generator are commonly used in PLL BASED CLOCK DRIVER logic.

ICS527R-03 Features

Available in the SSOP
Supply voltage of 3.3V
1 true outputs

ICS527R-03 Applications

There are a lot of Integrated Device Technology (IDT)
ICS527R-03 Clock Generators applications.

1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
