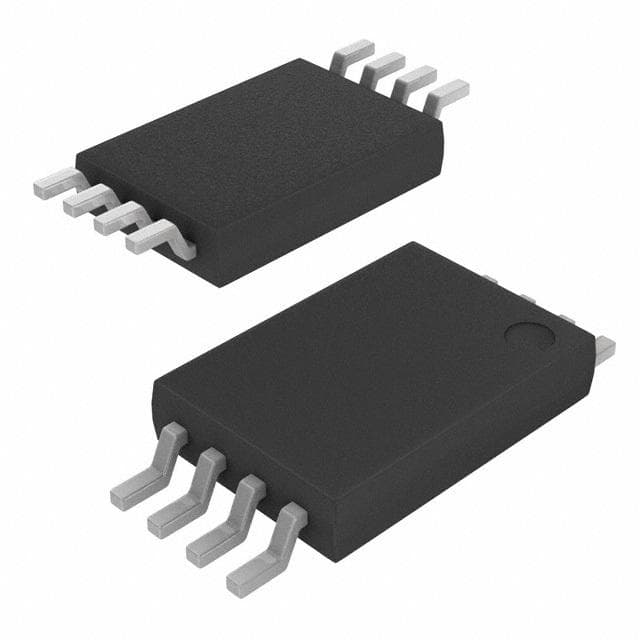

Renesas ICS2304NZG-1T

Manufacturer No:

ICS2304NZG-1T

Manufacturer:

Renesas

Package:

TSSOP

Description:

1 Circuit 140MHz 3.3V Clock Buffer DUAL 8 Pins TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICS2304NZG-1T information

Renesas ICS2304NZG-1T technical specifications, attributes, parameters and parts with similar specifications to Renesas ICS2304NZG-1T.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Packaging
Tape & Reel (TR)

Published
1999

JESD-609 Code
e3

Pbfree Code
no

Number of Terminations
8

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
R-PDSO-G8

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Temperature Grade
COMMERCIAL

Number of Circuits
1

Frequency (Max)
140MHz

Family
2304

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
LOW SKEW CLOCK DRIVER

Max I(ol)
0.024 A

Prop. Delay@Nom-Sup
3.8 ns

Propagation Delay (tpd)
3.8 ns

Number of True Outputs
4

Length
4.4mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ICS2304NZG-1T.

Datasheets:

integrateddevicetechnology-ics2304nzg1t-datasheets-8527.pdf

ICS2304NZG-1T Overview

TSSOP case is available for the cut smart buffer. In case Tape & Reel (TR), the cut smart buffer is available. Normal operation has a maximum value of 140MHz. A total of 8 terminations have been found in it. The supply voltage of 3.3V is capable of providing high efficiency. There is a place for it in the way of Surface Mount. On this board, there is a pin count of 8. There is a circuit clock contained within Clock Drivers that is responsible for this function. It is designed to operate at a minimum temperature of 0°C in order to maintain reliability. In order to ensure stable operation, the maximum operating temperature must be set to 70°C. The electronic gadget belongs to the 2304 family. This value is set to 3.6V for the maximum available supply voltage (Vsup). An IC with a value of LOW SKEW CLOCK DRIVER is used in order to achieve this. A voltage higher than 3V is necessary for normal operation of the system. There is a 3.3V volt supply that powers the timeing clock. It is possible to have 4 true outputs.

ICS2304NZG-1T Features

8 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

ICS2304NZG-1T Applications

There are a lot of Integrated Device Technology (IDT)
ICS2304NZG-1T Clock Buffers & Drivers applications.

Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
Computing
