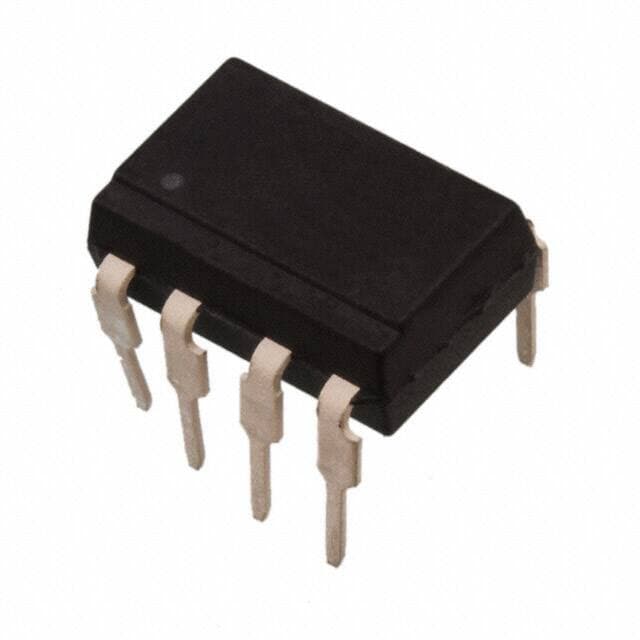

ICPL3120 Information

Isocom Components 2004 LTD ICPL3120 technical specifications, attributes, parameters and parts with similar specifications to Isocom Components 2004 LTD ICPL3120.

  • Type
  • Parameter
  • Factory Lead Time
  • 2 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • 8-DIP (0.300, 7.62mm)
  • Operating Temperature
  • -40°C~110°C
  • Packaging
  • Tube
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Technology
  • Optical Coupling
  • Reach Compliance Code
  • unknown
  • Voltage - Isolation
  • 5000Vrms
  • Type
  • Parameter
  • Number of Channels
  • 1
  • Voltage - Forward (Vf) (Typ)
  • 1.37V
  • Optoelectronic Device Type
  • LOGIC IC OUTPUT OPTOCOUPLER
  • Current - Output High, Low
  • 2A 2A
  • Rise / Fall Time (Typ)
  • 100ns 100ns
  • Current - DC Forward (If) (Max)
  • 25mA
  • Propagation Delay tpLH / tpHL (Max)
  • 500ns, 500ns
  • Common Mode Transient Immunity (Min)
  • 25kV/?s
  • Pulse Width Distortion (Max)
  • 100ns
  • Voltage - Output Supply
  • 15V~30V

Download datasheets and manufacturer documentation for Isocom Components 2004 LTD ICPL3120.

Datasheets:

The Isocom Components 2004 LTD Isolators - Gate Drivers ICPL3120 is a high-performance 8-PIN optocoupler with single channel in a gullwing package. This device features low drive current of 80?A, dual wide voltage range supply from 5V to 30V and a high isolation voltage of 2500Vrms for 1 minute. It has excellent pulse repetition rate with fast transition time of 4?s, higher reliability, and enhanced EMC/EMI isolation. It provides isolation shielding with minimal capacitive coupling, high speed logic compatible and a robust plastic package to ensure a secure operation as well as enhanced temperature range. Its ability to protect against overvoltage and short-circuit spikes makes it ideal for applications that require high-speed switching, high noise immunity, and low power consumption.
