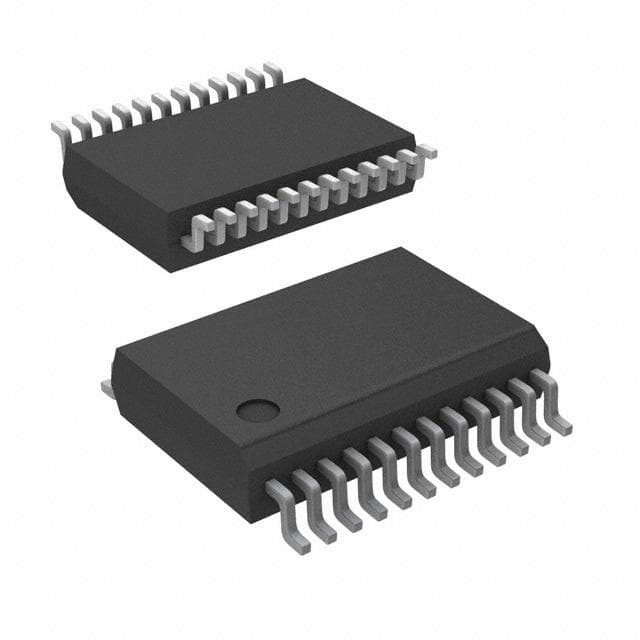

Renesas ICL3217IA

Manufacturer No:

ICL3217IA

Manufacturer:

Renesas

Package:

SSOP

Description:

24 Terminations Receivers 5 Bits 3 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICL3217IA information

Renesas ICL3217IA technical specifications, attributes, parameters and parts with similar specifications to Renesas ICL3217IA.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Packaging
Bulk

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.39.00.01

Subcategory
Line Driver or Receivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
3

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
24

JESD-30 Code
R-PDSO-G24

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
3.3/5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3V

Supply Current-Max
1mA

Differential Output
NO

Input Characteristics
SCHMITT TRIGGER

Interface IC Type
LINE TRANSCEIVER

Driver Number of Bits
5

Receiver Number of Bits
3

Interface Standard
EIA-232; TIA-232; V.24; V.28

Output Low Current-Max
0.0016A

Out Swing-Min
10 V

Length
8.2mm

Height Seated (Max)
2mm

Width
5.3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ICL3217IA.

Datasheets:

intersil-icl3217ia-datasheets-3553.pdf

ICL3217IA Overview

Designed for common LEDs, this driver IC features an enhanced SSOP package.There is a Bulk package for this receiver.An output voltage range of 3.3V is sufficient to run this line driver ic efficiently.There are 24 terminations in this wide receiver so that signals can be driven from the data and received.The transceiver is packaged with 24 market standard pinouts so that it can be easily used.A combination of optical transceiver downsizing and high-density Surface Mount mounting reduces the package size dramatically.In this ic receiver, the resolution was able to be set to a maximum of 5 bits.In the case of this receiver, a resolution of 3 bits is typically specified.There is a subcategory called Line Driver or Receivers for this rf transceiver module.It is designed so that it can be operated from a 3.3/5V power supply with this driver IC.It is important to supply enough input current to the VCC pin of the ic receiver, but not exceeding 1mA.LINE TRANSCEIVER is the IC type of ic receiver, used for controlling and managing information sharing.In addition, this transceiver module can't operate at temperatures higher than 85°C.In order to avoid damaging this transceiver module, its manufacturer recommends using a supply voltage below 5.5V.It requires a voltage supply of at least 3V in order to run.Temperatures above -40°C are ideal for operation.

ICL3217IA Features

Bulk package
24 pin count
3.3/5V power supply

ICL3217IA Applications

There are a lot of Intersil (Renesas Electronics America)
ICL3217IA Drivers/Receivers/Transceivers applications.

Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
Car radio
