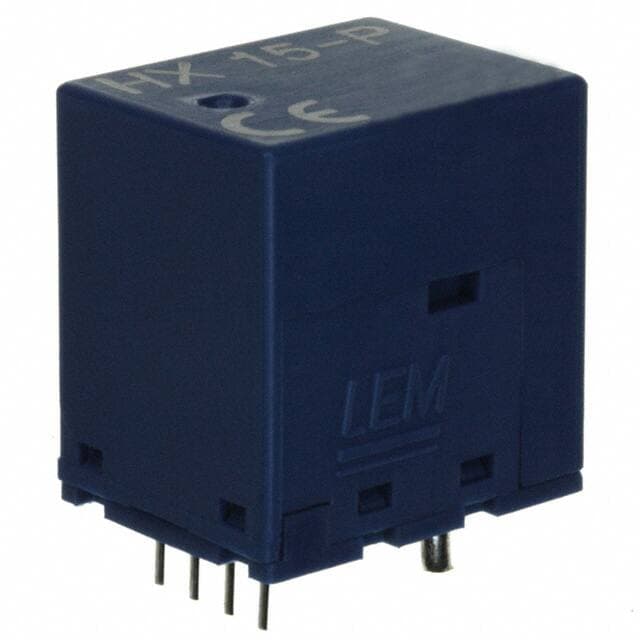

LEM HX 15-P

Manufacturer No:

HX 15-P

Manufacturer:

LEM

Package:

Module

Description:

HX Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -25°C~85°C ±15V 50kHz 15A Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HX 15-P information

LEM HX 15-P technical specifications, attributes, parameters and parts with similar specifications to LEM HX 15-P.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-25°C~85°C

Packaging
Tray

Series
HX

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
±15V

Frequency
50kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
15mA

Number of Channels
1

Termination Type
SOLDER

Polarization
Bidirectional

Response Time
3μs

Sensor Type
Hall Effect, Open Loop

Linearity
±1%

Sensors/Transducers Type
MAGNETIC FIELD SENSOR,HALL EFFECT

Housing
PLASTIC

For Measuring
AC/DC

Body Height
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM HX 15-P.

Datasheets:

lemusainc-hx10p-datasheets-1591.pdf

HX 15-P Overview

Safety measures are taken to protect the current sensors by putting them in Module packages. For protection, these sensors are packaged in the Tray. Current sensors should only output 15mA current.

HX 15-P Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -25°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: ±15V
Frequency: 50kHz
Sensing Current: 15A
Module Package

HX 15-P Applications

There are a lot of LEM USA Inc.
HX 15-P Current Sensors applications.

Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
