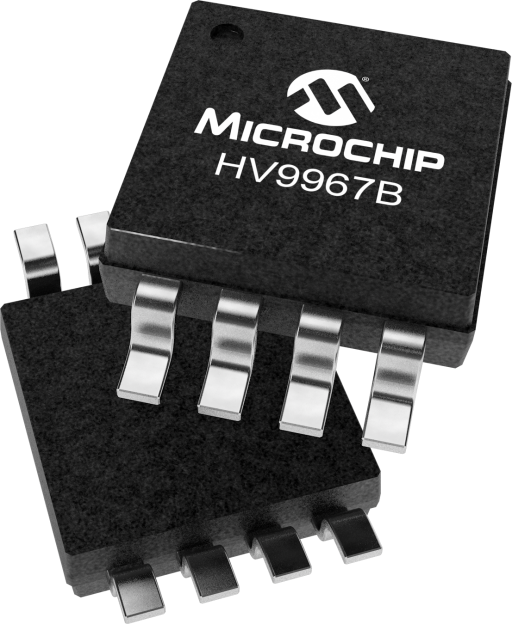

Microchip HV9967BMG-G

Manufacturer No:

HV9967BMG-G

Manufacturer:

Microchip

Package:

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Description:

HV9967B

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV9967BMG-G information

Microchip HV9967BMG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV9967BMG-G.

Type
Parameter

Download datasheets and manufacturer documentation for Microchip HV9967BMG-G.

User Guide:

9ae0f86bb7557205ab152df92605d253.pdf

Data Sheets:

f5980bdb2dd91b9a488a1381aa0bc972.pdf

The HV9967B is an average-mode current control LED driver IC operating in a constant off-time mode. The IC features an integrated 60V, 0.8Ω MOSFET that can be used as a stand-alone buck converter switch, or connected as a source driver for driving an external high-voltage depletion-mode MOSFET. The HV9967B is powered through its switching output when the integrated switch is off. Hence, the same external MOSFET can be used as a high-voltage linear regulator for powering the IC. The LED current is programmed with one external resistor. The average-mode current control method does not produce a peak-to-average error, and therefore greatly improves current accuracy and line and load regulation of the LED current without any need for loop compensation or direct sensing of the LED current at a high-voltage potential. The auto-zero circuit cancels the effects of the input offset voltage and of the propagation delay of the current sense comparator.

3% accurate LED current
Integrated 60V, 0.8Ω MOSFET
Low sensitivity to external component variation
Single resistor LED current setting
Fixed off-time control
PWM dimming input
Output short circuit protection with skip mode
Over-temperature protection
Available in compact 8-Lead MSOP and 8-Lead DFN packages
