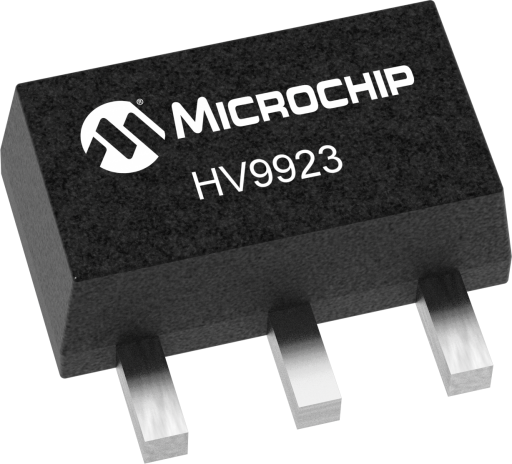

Microchip HV9923N8-G

Manufacturer No:

HV9923N8-G

Manufacturer:

Microchip

Package:

TO-243AA

Description:

SWITCH MODE LED LAMP DRIVER IC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV9923N8-G information

Microchip HV9923N8-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV9923N8-G.

Type
Parameter

Topology
Buck

+Vin min (V)
20

+Vin max (V)
400

Output Current
30mA

Dimming
No

Package
TO-92, SOT-89

Product Type
Off Line

Type
Switch-Mode

Operating Iq (µA)
0.2

Vfb (V)
0

Oja (C/W)
132, 133

Extra LDOs
0

Vdropout (mV)
0

IQ LDO
0

Download datasheets and manufacturer documentation for Microchip HV9923N8-G.

Data Sheets:

82b678e1a405a377ceca6753ef2d6997.pdf

User Guide:

1aa3d989c48bbc1ca3463bbd3b8b9019.pdf

The HV9923 is a pulse width modulated (PWM) high-efficiency LED driver control IC. It allows efficient operation of LED strings from voltage sources ranging up to 400VDC. The HV9923 includes an internal high voltage switching MOSFET controlled with fixed off-time (TOFF) of approximately 10.5μs. The LED string is driven at constant current, thus providing constant light output and enhanced reliability. The output current is internally fixed at 30mA. The peak current control scheme provides good regulation of the output current throughout the universal AC line voltage range of 85 to 265VAC or DC input voltage of 20 to 400V.

Constant output current: 30mA
Universal 85 - 265VAC operation
Fixed off-time buck converter
Internal 475V power MOSFET
