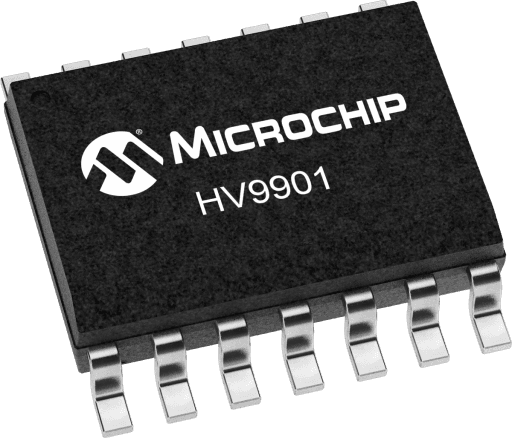

Microchip HV9901NG-G

Manufacturer No:

HV9901NG-G

Manufacturer:

Microchip

Package:

16-SOIC (0.154, 3.90mm Width), 14 Leads

Description:

UNIVERSAL RELAY DRIVER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV9901NG-G information

Microchip HV9901NG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV9901NG-G.

Type
Parameter

+Vin min (V)
10

+Vin max (V)
450

Iin max (mA)
2

Oscillator Frequency min (kHz)
20

Oscillator Frequency max (kHz)
140

Oscillator Frequency fsync max (kHz)
150

Max Output Duty Cycle (%)
99.50

Typical Current Sense Pull-In (V)
.883

Typical Current Sense Hold
Adjustable

External Adjustable Regulator Output Voltage (V)
2.0 - 5.5

External Adjustable Regulator Output Current (mA)
0 - 1.0

Package
SOIC-16

Download datasheets and manufacturer documentation for Microchip HV9901NG-G.

Data Sheets:

5579ccaa6df9f9ae20023390613cea99.pdf

The HV9901 universal relay driver provides high-efficiency driving for low-voltage relays with supply voltages as high as 450V. For example, a relay with a 5V coil can be driven directly from the rectified 120 VAC or 230 VAC line.

The IC includes two high-voltage linear regulators. The first one is for providing power to internal control circuitry. The second one has an adjustable output voltage and a 1 mA output current capability to support external circuitry, such as a microcontroller control circuit.

The pull-in current, pull-in time and hold current for the relay are individually programmable through two resistors and a capacitor. PWM switching can be synchronized with an external clock or with another HV9901 operating at a higher frequency.

The relay is operated through the enable input ENI. Logic polarity is under control of the polarity input POL. Audible noise coming from the relay can be suppressed by operating at a PWM frequency exceeding 20 kHz.

10 to 450V input voltage range
Energy saving hold current mode
Adjustable microcontroller supply
Low supply current <1.0mA
Constant current coil
Programmable pull-in current, pull-in time, and hold current
Efficient PWM operation using the relay coils’ inductance
