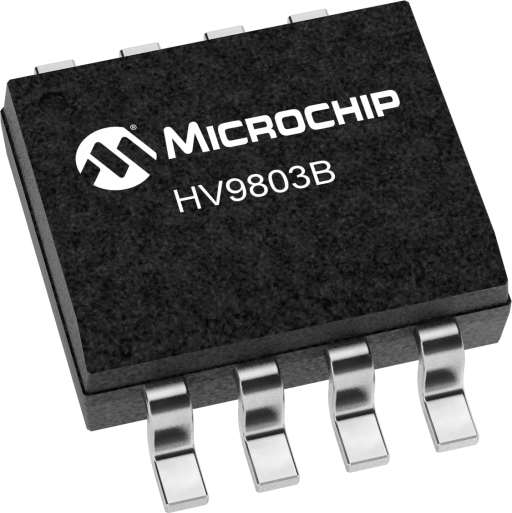

Microchip HV9803BLG-G

Manufacturer No:

HV9803BLG-G

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

HV9803B

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV9803BLG-G information

Microchip HV9803BLG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV9803BLG-G.

Type
Parameter

Topology
Buck

+Vin min (V)
7

+Vin max (V)
16

Output Current
External FET

Dimming
PWM / Linear

Package
SOIC-8

Operating Iq (µA)
1.5

Vfb (V)
0

Oja (C/W)
101

Extra LDOs
0

Vdropout (mV)
0

IQ LDO
0

Download datasheets and manufacturer documentation for Microchip HV9803BLG-G.

Data Sheets:

b39d864c70c284d73d59636353ad3af2.pdf

The HV9803B is an open loop average-mode current control LED driver IC operating in a constant off-time mode. The IC features ±2% current accuracy, tight line and load regulation of the LED current without any need for loop compensation or high-side current sensing. Its auto-zero circuit cancels the effect of both the input offset voltage and the propagation delay in the current sense comparator. The HV9803B can be powered from a 7.0 to 16V supply. The IC features fast PWM dimming response. The linear dimming input LD can accept a reference voltage from 0 to 3.0V. The IC is equipped with a current limit comparator for hiccup-mode output short circuit protection. It also features a programmable input under-voltage shutdown.

Fast average current control
Correction for propagation delay and offset voltage
Fixed off-time switching mode
Linear dimming input
PWM dimming input
Output short circuit protection with programmable skip mode
Input under-voltage shutdown

User Guide

PURCHASE
