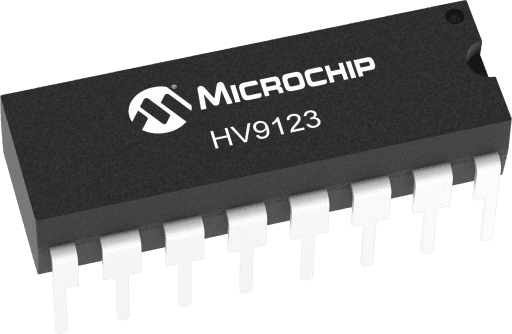

Microchip HV9123NG-G

Manufacturer No:

HV9123NG-G

Manufacturer:

Microchip

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

SWITCHMODE CONTROLLER, 450V, 2% REF

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV9123NG-G information

Microchip HV9123NG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV9123NG-G.

Type
Parameter

Vmin
10

Vmax
450

Feedback Accuracy max (%)
±2

Duty Cycle (%)
99

Switch
External

Package
SOIC-16, PDIP-16, PLCC-20

Download datasheets and manufacturer documentation for Microchip HV9123NG-G.

Data Sheets:

97b9c7def1a2cd4c6e3f8de489513745.pdf

Application Notes:

6820fcbf11e2c63f19e3af8acab41c38.pdf

56db7fe21d994a6b2cf737101ba50065.pdf

2472c443c24c834b9f2611fa9f6a4267.pdf

90c4d0a4a12291b536c30c62078da6df.pdf

ba34cda9830e1f6eaa14fb3b8f978d9f.pdf

710d88a2c7a2272c8519f7285c689d9b.pdf

HV9123 is a Switch Mode Power Supply (SMPS) controller subsystem that can start and run directly from almost any DC input, from a 12V battery to a rectified and filtered 240VAC line. It contains all the elements required to build a single-switch converter except for the switch, magnetic assembly, output rectifier(s) and filter(s). A unique input circuit allows the HV9123 to self-start directly from a high voltage input, and subsequently take the power to operate from one of the outputs of the converter it is controlling, allowing very efficient operation while maintaining input-to-output galvanic isolation limited in voltage only by the insulation system of the associated magnetic assembly. A ±2% internal bandgap reference, internal operational amplifier, very high speed comparator, and output buffer allow production of rugged, high performance, high efficiency power supplies of 50W or more, which can still be over 80% efficient at outputs of 1.0W or less. The wide dynamic range of the controller system allows designs with extremely wide line and load variations with much less difficulty and much higher efficiency than usual. The exceptionally wide input voltage range also allows better usage of energy stored in input dropout capacitors than with other PWM ICs. Remote on/off controls allow either latching or nonlatching remote shutdown. During shutdown, the power required is under 6.0mW. For detailed circuit and application information, please refer to application notes AN-H13, AN-H21 to AN-H24.

10 to 450V input voltage range
<1.3mA supply current
>1.0MHz clock
>20:1 dynamic range @ 500kHz
99% Maximum duty cycle version
Low internal noise
