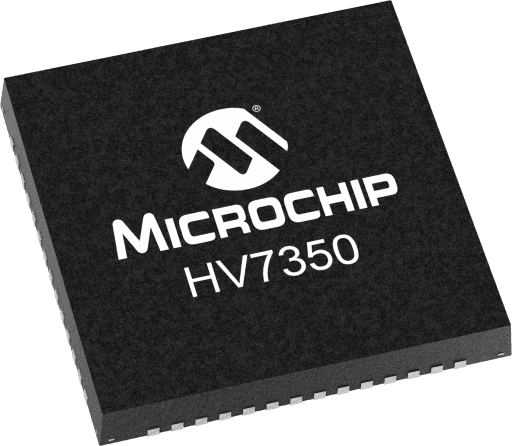

Microchip HV7350K6-G

Manufacturer No:

HV7350K6-G

Manufacturer:

Microchip

Package:

56-VFQFN Exposed Pad

Description:

ULTRASOUND RTZ PULSER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV7350K6-G information

Microchip HV7350K6-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV7350K6-G.

Type
Parameter

# of Channels
8

Output Voltage (V)
±60

Output Current (A)
±1.0

Type
Monolithic

Package
QFN-56

Features
Built-in floating power supplies

Download datasheets and manufacturer documentation for Microchip HV7350K6-G.

Data Sheets:

5ca42b5513de71280b8117f68ada103e.pdf

User Guide:

32311794877d84579321c149267ca6e3.pdf

HV7350 is an eight channel monolithic high voltage high-speed pulse generator with built-in fast return to zero damping FETs. This high voltage and high-speed integrated circuit is designed for portable medical ultrasound image devices. HV7350 consists of a controller logic interface circuit, level translators, MOSFET gate drives, and high current power P-channel and N-channel MOSFETs as the output stage for each channel. The output peak currents of each channel are guaranteed to be over ±1.0A with up to ±60V pulse swings as well as return-to-zero (RTZ) mode. The gate drivers for the output MOSFETs are powered by built-in linear 5.0V regulators referenced to VPP and VNN. This direct coupling topology of the gate drivers not only saves four floating voltage supplies or AC coupling capacitors per channel, but also makes the PCB layout smaller and easier. An input clock pin is available to realign all the logic input control lines to a master clock. Precise logic timing is always essential in any ultrasound systems.

HVCMOS technology for high performance
High density integrated ultrasound transmitter
0 to ±60V output voltage
±1.0A source and sink current in pulse mode
±1.0A source and sink current in RTZ mode
Up to 20MHz operating frequency
Matched delay times
Optional clock re-alignment
3.3V CMOS logic interface and reference
+3.3V low voltage supply for VDD
Built-in linear regulators for floating gate driver
Built-in output drain diodes & bleed resistors
